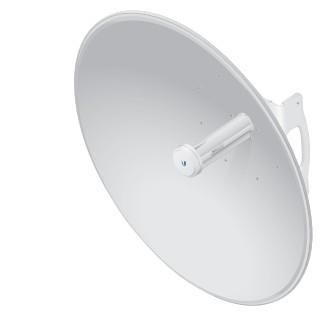

PowerBeam 5AC 620 High-Performance airMAX® ac Bridge Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam™ ac is ideal for CPE deployments requiring maximum performance. PBE-5AC-620 Dimensions 620 x 620 x 386 mm (24.41 x 24.41 x 15.2") Weight 6.4 kg (14.11 lbs) Power Supply 24V, 0.5A Gigabit PoE Max. Power Consumption 8.5W Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range 20-26VDC Operating Frequency Worldwide USA: 5150 - 5875 MHz U-NII-1 USA: 5150 - 5250 MHz U-NII-2A USA: 5250 - 5350 MHz U-NII-2C USA: 5470 - 5725 MHz U-NII-3" 5725 - 5850 MHz Gain 29 dBi Networking Interface (1) 10/100/1000 Ethernet Port Processor Specs Atheros MIPS 74Kc, 720 MHz Memory 128 MB DDR2, 16 MB Flash LEDs (1) Power, (1) LAN, (4) WLAN Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels Max. VSWR 1.6:1 Channel Sizes PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz Polarization Dual Linear Enclosure Outdoor UV Stabilized Plastic Mounting Pole-Mount (Kit Included) Wind Loading Radome Excluded: 1510 N @ 200 km/h (340 lbf @ 125 mph) Radome Included: 1830 N @ 200 km/h (411 lbf @ 125 mph) Wind Survivability 200 km/h (125 mph) ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV Operating Temperature -40 to 70° C (-40 to 158° F) Operating Humidity 5 to 95% Noncondensing Wireless Approvals FCC, IC, CE RoHS Compliance Yes Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 Vibration Test IEC 68-2-6 Temperature Shock Test IEC 68-2-14 UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
