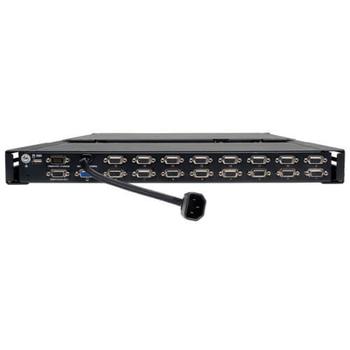

Model #: B040-016-19 NetController 19" VGA Console KVM Switch - 16 Port Tripp Lite’s B040 Series NetController Rackmount Console KVM switches are a cost effective and highly flexible system for controlling up to 128 computers from a single 19” display console. Available in 8port or 16port, these consoles can be daisy chained with Tripp Lites stand-alone B042 NetController series KVM switches via dedicated daisy-chain ports. Switching between attached servers can be accomplished with on console push buttons, On Screen Display menu, or Hot-Key. Utilizing Tripp Lites P780 series super slim KVM cables ( not much thicker than a standard Cat5 patch Cable…ordered seperately), KVM cabling is kept to a minimum and extremely manageable. Cables are double duty, attaching to either PS/2 or USB based computers, without purchasing additional adapters. An additional USB port is provided, allowing attachment of an external mouse to be used in lieu of the provided console touch-pad. The B040 Console KVM switches support a wide variety of software platforms, including: MAC, DOS, Windows 95/98/SE/NT/2000/ME/XP/Server2003/Vista, Linux, Unix, and BSD. Password feature provides additional security to prevent unauthorized access to attached computers. All hardware included for 4-post racking, and designed for easy, one person installation. Fits into any rack from 29” to 42” deep. 2-post rackmounting available using Tripp Lite B109-000, 2-post rackmount kit. 16-port KVM Switch with built-in 19" Monitor, Keyboard, and Mouse Connect and control up to 128 computers Standard EIA 19" rackmounting Use in racks from 29" to 42" deep OSD menu for intuitive operation and easy control USB and PS/2 mouse/keyboard support Password protection and auto-logout features Firmware upgradeable Hot-swappable: disconnect and reconnect USB computers w/o reboot Easy port selection via push buttons, hot keys, or On Screen Display Rugged ball bearing slides offer long life usage Super slim KVM cables for easy cable management offer USB and PS/2 connections at the computer Package Includes 1 - B040-016-19, 19" Console KVM Switch 1 - 4ft Firmware Upgrade cable, HD15F-DB9F 1 - AC Power Cord 1 - Owners Manual CD 1 - Quick Start Guide OVERVIEW # Of Users 1 Control Push Button, On Screen Display menu, Hot-Key Max CPU 128 Warranty 1 Year Limited PHYSICAL Style 1U Rack Console w/ 19" LCD CONNECTIONS Computer/Server Ports 16 x HD15F Daisy-Chain Port HD15F Firmware Upgrade Port HD15 Male Other Ports USB ( for external mouse attachment )
