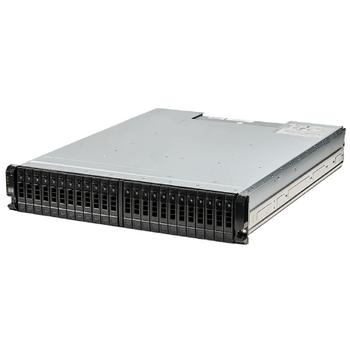

Exos X 2U24 Features: Self-healing storage technology, ADAPT and ADR Deliver unfettered data access with dual redundant controllers capable of achieving superior sequential read and write performance Expand a data centre seamlessly with flexible SSD, HDD, and hybrid configuration options Efficiently manage hot and cold data with real-time data tiering Opt for replication and snapshot features to meet critical enterprise requirements Save space and maximise capacity by stacking 10 Enclosures for 240 drives of data storage Specifications: General Max Capacity Per Enclosure 84 Form factor 5U rack mount Controller Model Seagate 4006 VELOSCT (2 per enclosure) Controller Performance Up to 12 GB/s read throughput, 10 GB/s write throughput, 725K IOPS (Random Read) Advanced Software Features Auto-tiering, Snapshots, Asynchronous replication Base Array Software Features Virtual pools, Thin provisioning, ADAPT, SSD read cache, Encryption High-Availability Features Redundant hot-swap controllers, Redundant hot-swap drives, fans, power, Dual power cords, Hot standby spare, Automatic failover, Multi-path support Device (Drive) Support SAS HDD, NL-SAS HDD, SAS SSD (2.5 Form Factors) Data Protection Seagate ADAPT and RAID levels supported: 0, 1, 5, 6, 10 Self Healing Technology Autonomous Drive Regeneration (ADR) System Configuration 2U12 Arrays, Up to 12 drives per enclosure, 10 enclosures maximum including the master, totalling 120 Drives 2U24 Arrays, Up to 24 drives per enclosure, 10 enclosures maximum including the master, totalling 240 Drives 5U84 Arrays, Up to 84 drives per enclosure, 4 enclosures maximum including the master, totalling 336 Drives Physical 2U: Height: 87.9 mm/3.46 in, Width: 443 mm/17.44 in, Depth: 630 mm/24.8 in, Width w/ear mounts: 483 mm/19.01 in, Weight: 17 kg/38 lb, Weight (with drives): 30 kg/66 lb Hosts External Ports 4 per Controller, 8 per System Fibre Channel Models Host speed: 32/16 Gb/s Fibre Channel, Interface type: SFP+/SFP28 iSCSI Models Host speed: 10 Gb/s, 25 Gb/s iSCSI, Interface type: SFP+/SFP28 Ethernet Models 10GBASE-T (auto-negotiation to 1Gb) SAS Models Host speed: 12 Gb/s, 6 Gb/s SAS, Interface type: HD Mini-SAS System Configuration System Memory 48 GB per system Volumes per System 1,024 Cache Mirrored cache, Supercapacitor cache backup, Cache backup to flash – non-volatile Management Interface Types 10/100/1000 Ethernet, Micro USB Protocols Supported SNMP, SSL, SSH, SMTP, HTTP(S), REDFISH Management Consoles Web GUI, CLI Management Software Seagate Systems storage management console, Remote diagnostics, Non-disruptive updates, Volume expansion Power Requirements — AC Input Input Power Requirements 100 VAC-240 VAC, 50 Hz/60 Hz Max Power Output per PSU 580W Environmental/Temperature Ranges Operating/Non-operating Temperature ASHRAE A2, 5°C to 35°C (41°F to 95°F), derate 1°C/300m above 900m, 20°C/hr max rate of change / –40°C to 70°C (–40°F to 158°F) Operating/Non-operating Humidity –12°C DP and 10% RH to 21°C DP and 80% RH, max DP 21°C / 5% to 100% non-condensing Operating/Non-operating Shock 5 Gs, 11 ms, half sine pulses/15 Gs, 7 ms, half sine pulses Operating/Non-operating Vibration 0.18 Gs rms 6 Hz to 500 Hz random / 0.5 (Z-axis) and 0.25 (X&Y-axis) Gs rms 6 Hz to 200 Hz random Standards/Approvals Standard Marks/Approvals United States, Canada, European Union (EU), Australia/New Zealand, Japan, China (PRC), Russia, Mexico, Germany, South Korea, Taiwan, India Safety Certifications UL 62368-1 | CAN/CSA-C22.2 No.62368-1- 19 | CE to EN 62368-1 | CB IEC 62368-1 | Power Supplies CCC & BIS Emissions (EMC) FCC CFR 47 Part 15 Subpart B Class A | ICES/NMB-003 Class A | EN 55032:2015 Class A |AS/NZS CISPR 22/CISPR 32 Class A | VCCI Class A | KN 32/KN 35 Class A | CNS 15936 Class A Harmonics & Flicker EN 61000-3-2 | EN 61000-3-3 Immunity EN 55032 | KN 32/KN 35 Environmental Standards The RoHS Directive (2011/65/EU) | The WEEE Directive (2012/19/EU) | The REACH Directive (EC) No. 1907/2006 and WFD Directive (EU) 2018/815 Power Supply Units Power Supply Ecodesign (Part SP-PCM01-HE580-AC/Model FS580FS104G-XX) – Gold Power Efficiency: 115 VAC/60 Hz 10% Load = >80%; 20% Load = >87%; 50% Load = >90%; 100% Load =>87%; Power Efficiency: 230 VAC/50 Hz 10% Load = >80%; 20% Load =>88%; 50% Load = >92%; 100% Load =>88% Power Factor Conditions (PFC): 10% Loading = N/A; 20% Loading = >0.90; 50% Loading = >0.90; 100% Loading = >0.95 Power Supply Power Efficiency: 115 VAC/60 Hz 10% Load = >80%; 20% Load = >90%; 50% Load = >92%; 100% Load =>89%; Power Efficiency: 230 VAC/50 Hz 10% Load = >80%; 20% Load =>90%; 50% Load = >94%; 100% Load =>91% Power Factor Conditions (PFC): 10% Loading = N/A; 20% Loading = >0.90; 50% Loading = >0.95; 100% Loading = >0.95
