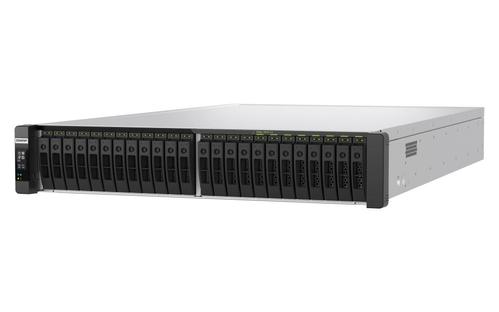

QNAP 24-BAY ALL-FLASH U.2 NVME PCIE GEN4 DP NAS 2X XEON.S 4314 128GB EXT

TDS-h2489FU R2 Series

• Scalable ECC RDIMM memory up to 1TB
  • Equipped with error-correcting DDR4 ECC RDIMM memory, expandable up to 1TB, boosting multitasking performance.
• 25GbE as standard and upgradable to 100GbE
  • Enable Port Trunking and connect to a network switch to expand bandwidth for more devices and workstations.
• High expandability with PCIe Gen 4
  • Has four PCIe Gen 4 slots, allowing installing high-speed network cards (10/25/100GbE), M.2 SSD expansion cards, Fibre Channel cards, and storage expansion cards.
• Petabyte-scale storage
  • Flexibly connect QNAP PCIe JBOD or SAS JBOD for higher capacity, exceptional performance, and flexible expandability.
• M.2 SSD caching
  • Two M.2 PCIe NVMe / SATA slots for cache acceleration or high-speed storage pools, enhancing performance and data access speed.
• Immutability
  • Uses the ZFS-based QuTS hero operating system, which ensures high data integrity with immutable storage, snapshot protection, data deduplication, and SSD optimization.

• 2 x Intel® Xeon® Silver 4314 16-core/32-thread processor, up to 3.4 GHz
• 2 x Intel® Xeon® Silver 4309Y 8-core/16-thread processor, up to 3.6 GHz

• 64-bit x86

• Yes (AES-NI)

• 1 TB RDIMM DDR4 ECC (32 x 32 GB)
• 512 GB RDIMM DDR4 ECC (16 x 32 GB)
• 256 GB RDIMM DDR4 ECC (8 x 32 GB)
• 128 GB RDIMM DDR4 ECC (8 x 16 GB)
• 64 GB RDIMM DDR4 ECC (8 x 8 GB)

• 1 TB (32 x 32 GB)

• 32 x RDIMM DDR4 ECC (16 x slots per socket)

• 5GB (Dual boot OS protection)

• 24 (16 x 2.5-inch U.2 PCIe NVMe + 8 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps)

• 2.5-inch SATA solid state drives (#17-24)
• 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives

• Yes (Not supported M.2 SSD)

• Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s
• Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s

• Yes

• Yes

• 4 (2.5G/1G/100M/10M)

• 2 x 25GbE SFP28 SmartNIC port

• Yes

• Yes

• Slot 1: PCIe Gen4 x16 or Gen4 x8
• Slot 2: PCIe Gen4 x8
• Slot 3: PCIe Gen4 x16 or Gen4 x8
• Slot 4: PCIe Gen4 x8

• 4

• Rackmount

• SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address

• Power, Reset, OLED

• 88.3 × 446.2 × 713.2 mm

• 22.77 kg

• 27.55 kg

• 0 - 35°C (32°F - 95°F)

• -20 - 70°C (-4°F - 158°F)

• 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)

• 1200W PSU(x2), 100-240Vac
• Max Wattage:
  • 1200W@200-240Vac
  • 1000W@100-127Vac

• 467.59 W

• 6 x 60mm, 12VDC

• Buzzer

• 5

• 10,000
