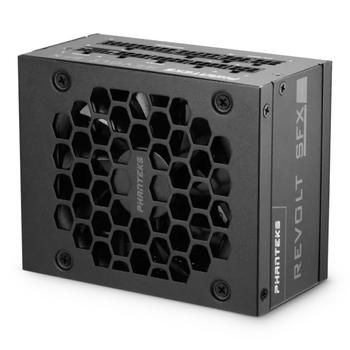

PHANTEKS Revolt 850W SFX PSU 80+ Platinum, ATX 3.0, SFX, Full Modular, Powered by Seasonic

Revolt SFX 850

• Intelligent thermal control to optimize noise and cooling performance.
• Complete silence with 0 RPM mode under 30% load in Hybrid Mode.
• Long lasting 92mm Fluid Dynamic Bearing (FDB) fan.
• Highly efficiënt, 80PLUS Platinum certified with 94% efficiency at 50% load.

• Color Black
• Dimensions 125 x 100 x 63.5 mm | 3.9 x 5.9 x 3.4 in
• Power Output 850W
• PCIe GEN5 OUTPUT 600W
• 80 Plus Platinum

• Cooling Fan 92 mm Fluid Dynamic Bearing (FDB) Fan
• Back Plate Fully modular
• MTFB > 100.000 hrs at 25˚C (Excluding DC fan)
• Power Supply Output Connectors
  • Mainboard – 1x
  • CPU | PCIe – 3x
  • SATA | Molex – 3x
  • 12V-2×6 – 1x
• Output Protection
  • OPP (Overpower Protection)
  • OVP (Over Voltage Protection)
  • UVP (Under voltage protection)
  • SCP (Short Circuit Protection)
  • OCP (Over Current Protection)
  • OTP (Over Temperature Protection)
  • No-Load Protection
  • Reset Protection

• Output Voltage / Maximum Output
  • 12V / 70.8A
  • 5V / 20A
  • 3.3V / 20A
  • -12V / 0.3A
  • 5VSB / 3A
• DC Output 850W
• AC Output 100-240Vac 12-6A 50-60Hz

• Net Weight 1.10 kg | 2.43 lbs
• Gross Weight 2.24 kg | 4.94 lbs
• Warranty 10 Years limited
• Scope of Delivery
  • 1x Revolt 750W SFX Power supply unit
  • 1x C13 Power cord (1500mm)
  • 1x SFX to ATX bracket
• Included Cables
  • 1x 18+10-Pin Mainboard (310 mm)
  • 1x 8-Pin CPU (420 mm)
  • 1x 8-Pin PCI-E (250 mm)
  • 1x 8-Pin PCI-E (250 mm Splitter)
  • 1x 16-Pin PCI-E Gen 5.0 (250 mm)
  • 1x 6-Pin 2-SATA (370 – 250 | 120 mm)
  • 1x 6-Pin 4-SATA (550 – 250 | 100 | 100 | 100 mm)
  • 1x 6-Pin 3-SATA + 1-Molex 180° (550 – 250 | 100 | 100 | 100 mm)
• Accessory Box
  • 1x User’s manual
  • 1x Installation guide
  • 1x PSU bag
  • 1x PSU tester
  • 1x Zip tie bag
  • 1x Screw pack
  • 1x Velcro pack
