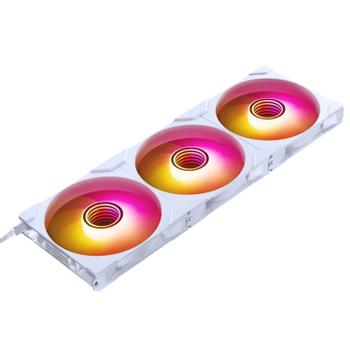

PHANTEKS M25 Gen2 140mm DRGB Fläkt 3pk (vit) 3 x 140mm, 350-1800 ± 10% RPM, 36.4 dBA
|
|
PHANTEKS M25 Gen2 140mm DRGB Fläkt 3pk (vit) 3 x 140mm, 350-1800 ± 10% RPM, 36.4 dBA
Artikelnr:
PH-F140M25_G2_DWT01_3P
-
Använd område
PC kylfläkt
-
Fan diameter
14cm
|
M25G2-140
High Value Daisy-Chained Fan White D-RGB
PH-F140M25_G2_DWT01 _3P
The Phanteks M25 Gen2 comes packed with features previously only seen in the highest-end fans. Its daisy-chain unified fan frame easily interlocks with the next fan to link multiple fans together into one.
With its blades designed specifically for high airflow performance on radiators and heat sinks, the M25 Gen2 excels where it matters. Delivering low temperatures with a clean look to elevate your system.
Specifications:
General
- Model No.
- Regular PH-F140M25_G2_DWT01 | PH-F140M25_G2_DWT01 _3P
- Reverse PH-F140M25R_G2_DWT01 | PH-F140M25R_G2_DWT01 _3P
- UPC Code
- Regular 886523003540 | 886523003571
- Reverse 886523003632 | 886523003656
- Frame Size 140 x 140 x 25 mm | 5.51 x 5.51 x 0.98 in
- Blade Geometry Nine blades design
- Color White
- Connector Linq6
- Cable Length 140 mm | 5.51 in Daisy-chain
Technical Details Regular
- Bearing Type Hydraulic bearing
- Rated Voltage 12V
- Noise Level 36.40 dBA
- Max. Airflow 101.78 CFM
- Max. Air Pressure 2.23 mm H2O
- Speed 350~1800 ± 10% RPM
- MTFB 40.000 hours
- Max Current 0.30A
- Max Power 3.36W
- Operating Voltage Range DC 6 – 13.2V
- LED Number 12
- LED Rated Current Max. 0.43A
Technical Details Reverse
- Bearing Type Hydraulic bearing
- Rated Voltage 12V
- Noise Level 40.95 dBA
- Max. Airflow 100.07 CFM
- Max. Air Pressure 2.04 mm H2O
- Speed 350~1800 ± 10% RPM
- MTFB 40.000 hours
- Max Current 0.30A
- Max Power 3.36W
- Operating Voltage Range DC 6 – 13.2V
- LED Number 12
- LED Rated Current Max. 0.43A
Single Pack
- Net Weight 187 ± 5 g | 6.59 ± 0.17 oz
- Gross Weight 260 ± 5 g | 9.17 ± 0.17 oz
- Warranty 3 Years
- Scope of Delivery 1x M25G2-140 fan
- Accessories
- 1x Linq6 extension cable 500 mm
- 4x Screw cover corner
- 2x Screw cover bridge
- Screws 5x Fan screw
Triple Pack
- Net Weight 563 ± 5 g | 19.85 ± 0.17 oz
- Gross Weight 732 ± 5 g | 25.82 ± 0.17 oz
- Warranty 3 Years
- Scope of Delivery 3x M25G2-140 fans
- Accessories
- 2x Linq6 extension cable 500 mm
- 1x Linq6 adapter cable 500 mm
- 8x Screw cover corner
- 4x Screw cover bridge
- Screws 14x Fan Screw
