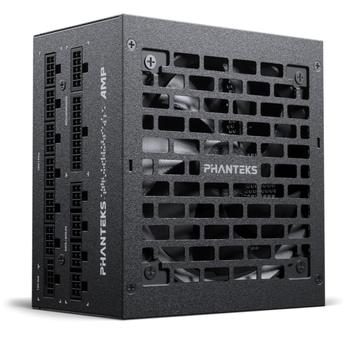

PHANTEKS AMP GH 1000W Platinum PSU (svart) ATX 3.0, 80 Plus Platinum, Fully Modular
|
|
PHANTEKS AMP GH 1000W Platinum PSU (svart) ATX 3.0, 80 Plus Platinum, Fully Modular
Artikelnr:
PH-P1000GH_BK01_EU
-
Kapacitet
1000W
-
80 PLUS certification
80 PLUS Platinum
|
AMP GH 1000 Black
PH-P1000GH_BK01
Features:
- Ultra-High Power Density, Compact Size
- Ultra-high power density with a small footprint of only 140mm depth.
- Gold-Plated High Current Terminals
- Reduces current transmission resistance for increased efficiency.
- 120 mm Hydraulic Dynamic Bearing Fan
- The hydraulic dynamic bearing (HDB) improves the lubrication of the bearing for increased stability and longevity.
- Cable-Free Connection Design
- Backpanel and PCB are connected by a copper plate to improve output power quality.
- Multi-GPU Support
- Multiple 6-Pin and 8-Pin output connectors support all multi GPU platforms.
Specifications:
General
- Color Black
- Dimensions 140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in
- Power Output 1000W
- PCIe GEN5 OUTPUT 600W
- 80 Plus Platinum
Technical
- Cooling Fan 120 mm Hydraulic bearing fan
- Back Plate Fully modular
- MTFB > 100.000 hrs at 25˚C (Excluding DC fan)
- Power Supply Output Connectors
- Mainboard – 1x
- CPU | PCIe – 5x
- SATA | Molex – 3x
- 12V-2×6 – 1x
- Output Protection
- OPP (Overpower Protection)
- OVP (Over Voltage Protection)
- UVP (Under voltage protection)
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)
- OTP (Over Temperature Protection)
- No-Load Protection
- Reset Protection
AC/DC
- Output Voltage / Maximum Output
- 12V / 83A
- 5V / 20A
- 3.3V / 20A
- -12V / 0.3A
- 5VSB / 3A
- DC Output 1000W
- AC Output 100-240V ~ 12-6A 50-60Hz
Extra
- Net Weight 1.40 kg | 3.08 lbs
- Gross Weight 3.20 kg | 7.05 lbs
- Warranty 8 Years limited
- Scope of Delivery
- 1x AMP GH 1000W Power supply unit
- 1x C13 Power cord (1500mm)
- Textured Cables
- 1x 18+10-Pin Mainboard (610 mm)
- 2x 4+4-Pin CPU (650 mm)
- 4x 6+2-Pin PCI-E (750 mm)
- 1x 12V-2×6 (720 mm)
- 3x 6-Pin 4-SATA (450 – 150 | 150 | 150 mm)
- 1x 6-Pin 2-SATA + 2-Molex (450 – 150 | 150 | 150 mm)
- Accessory Box
- 1x User’s manual
- 1x Installation guide
- 1x PSU bag
- 1x PSU tester
- 1x Zip tie bag
- 1x Screw pack
- 1x Velcro pack
