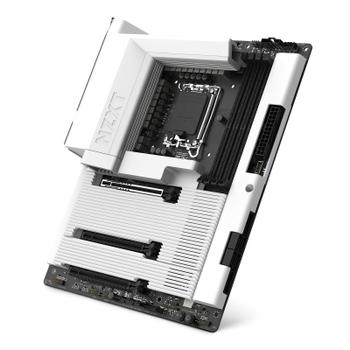

N7 Z890 Intel® ATX Gaming Wi-Fi Motherboard with Full Cover N7-Z89XT-W1 Features: Intel LGA 1851 Socket: Designed for Intel® Core™ Ultra (Series 2) processors, featuring an RL-ILM socket for reduced mounting pressure and improved thermal contact. Optimal Power: 16+1+2 power phase design with 80A DrMOS and a six-layer, low-loss 2-ounce copper PCB ensure stable power delivery. Thermal Management: VRM and PCIe 5.0 NVMe SSD heatsinks optimize cooling efficiency, keeping temperatures low during intense workloads. PCIe 5.0 Expansion: One PCIe® 5.0 x16 slot for GPUs and two PCIe® 4.0 x16 slots for additional high-speed expansion. High-Speed Storage: One PCIe® 5.0 and four PCIe® 4.0 M.2 slots deliver ultra-fast storage speeds, reducing load times and maximizing efficiency. DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness. Fast Connectivity: Thunderbolt™ 4, Wi-Fi 6E, and 2.5GbE enable high-speed data transfers and low-latency networking. Sleek, Minimal Design: A full PCB cover provides a clean, modern aesthetic that integrates seamlessly into any build. Specifications: CPU CPU Intel® Socket LGA 1851 for Intel® Core™ Ultra Processors (Series 2) Chipset Chipset Intel® Z890 Memory DIMM Slots 4 x DDR5 only Memory Architecture Dual-Channel Intel® Extreme Memory Profile (XMP) 3.0 Supported Expansion Slots PCIe 5.0 ×16 slot (PCIEX16_1) 1 PCIe 4.0 ×16 slots (PCIEX16_2 & PCIEX16_3) 2 M.2 Socket (Key E) 1 (Type 2230 Wi-Fi/BT PCIe Wi-Fi module and Intel® CNVio/CNVio2) Storage M.2_1 Type 2280 (PCIe 5.0 ×4 mode) M.2_2 Type 2280 (PCIe 4.0 ×4 mode) M.2_3 Type 2280 (PCIe 4.0 ×4 mode) M.2_4 Type 2280 (PCIe 4.0 ×4 and SATA 6Gb/s mode) SATA 6Gb/s ports 4 LAN LAN Realtek® 2.5G LAN Wireless Dual-Band Wi-Fi 6E Supported Bluetooth v5.3 Audio Audio Realtek® ALC1220 Audio Codec Rear I/O Wireless antenna SMA connectors 2 HDMI™ port 1 Thunderbolt™ 4 ports 2 USB 3.2 Gen 2x2 Type-C® port 1 USB 3.2 Gen 2 ports 4 USB 3.2 Gen 1 Type-A® ports 3 Clear CMOS button 1 LAN (RJ45) port 1 Audio jacks 2 Optical S/PDIF out port 1 Internal I/O 24-pin ATX power connector 1 8-pin ATX 12V power connector 2 4-pin CPU_FAN connector 1 4-pin AIO_PUMP connector 1 4-pin SYS_FAN connectors 3 NZXT RGB LED connector 1 5V ARGB LED connectors 2 NZXT 8-pin PWM connectors 2 USB 2.0 header 2 (Up to 4 USB 2.0 ports) USB 3.2 Gen1 header 2 (Up to 4 USB 3.2 Gen 1 ports) USB 3.2 Gen2x2 front panel header 1 (For USB Type-C) Front panel audio connector 1 Power button 1 Reset button 1 Post LEDs 1 General Operating System Windows® 11/10 64-bit Form Factor ATX Warranty 3 years Model Number N7-Z89XT-W1 (White) / N7-Z89XT-B1 (Black) UPC 810074846264 (White) / 810074846271 (Black) EAN 5056547206202 (White) / 5056547206219 (Black)
