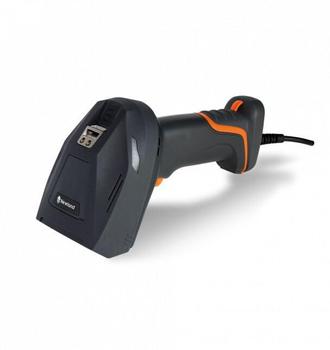

Newland NVH300 Angler DP The NVH300 Angler DP is perfect for scanning DPM barcodes even on reflective, curved or shiny surfaces with its advanced illumination. The intelligent light system switches between illumination types to adjust to the existing light source and simplify the scanning of difficult barcodes. The rugged industrial design and IP64 housing guarantee that the scanner survives even in the harshest environments. Superior DPM Scanning Packed in a Rugged Design The NVH300 Angler DP is equipped with direct white light as well as red and blue diffuse illumination to ensure barcodes can be scanned from different materials, shapes, colors and complex backgrounds. NVH300 Angler DP is perfect for industrial, manufacturing and warehousing industries with its rugged design. Features: New Vision The NVH300 Angler DP is the first of Newland’s New vision barcode readers designed for high-end and specialist scanning requirements that include an element or combination of; industrial protection, High density and DPM code reading acumen. DPM Decoding With a new generation of industrial decoding, the NVH300 Angler DP can read laser marked and dot peened barcodes on many types of surfaces. Surgical equipment, machinal engineering parts and printed circuit boards Advanced illumination The NVH300 Angler DP uses three different light sources to combat the contrast variances encountered from different materials marked by the DPM codes. The issues confronted by the reflection and distortion of barcodes can be negated by using different colored light projected from different angles. Intelligent Configuration The NVH300 Angler DP uses the three illumination colors it has and the angles of the light source with a level of intelligence by cycling through the options automatically after a short delay in attempting to scan a code. When the ideal light colors and angle combination is found, the NVH300 remembers the last setting for the following code. Nset Newlands’s new vision range of scanners is accompanied by its own advanced configuration software. Nset is a more DPM and High-density feature-packed version of our Easyset configuration software. Industrial Design The NVH300 Angler DP is fortified inside and out. With an IP64 sealed housing and 1.8m drop specification, the NVH300 DPM is Newland’s most formidable handheld scanner. Dirty, harsh environments are no deterrent to the NVH300 DPM. We back this up with a standard 5 Year warranty. Specifications: Data Capture 1D : All major 1D symbologies, including EAN 8, EAN 13, UPC E, UPC A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Post 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128. 2D : All major 2D symbologies, including QR Code, Data Matrix. Image Sensor : 1280x960 CMOS Illumination : Direct: White LED; Diffuse: Ring of red LEDs, Ring of blue LEDs Aiming : 650nm laser diode Depth of Field Code 39 (5mil) : 18mm-90mm Depth of Field DataMatrix (10mil) : 0mm-90mm Depth of Field QR (15mil) : 0mm-90mm Performance Minimal Print Contrast : 20% Scan Angle Roll : 360° Scan Angle Roll : ±60° Scan Angle Skew : ±55° Field of View Horizontal : 41° Field of View Vertical : 31° Motion Tolerance : Max 2m/s (6.56ft/s) Physical Dimensions (mm) : 76(W) x 107(D) x 185(H) mm Weight : 245g Interfaces : RS-232, USB Notifications : Beep, LED indicator, vibration Input Voltage : 5VDC±5% Current @ 5VDC Operating : 450mA (typical), 475mA (max) Power Consumption : 2250mW (typical) Environmental Operating Temperature : -20°C to 50°C (14°F to 122°F) Storage Temperature : -40℃ to 70℃ (-40°F to 158°F) Humidity : 5% to 95% (non-condensing) Electro Static Discharge (ESD) : ±8 KV (direct discharge); ±16 KV (air discharge) Drop : 1.8m IP Rating : IP64 Software Configuration Tools : NSet Certifications Hardware : FCC Part 15 Class B, CE EMC Class B Warranty Standard : 5 years
