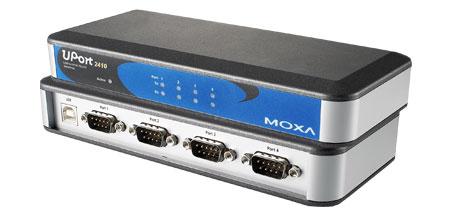

UPort 2410 4-port RS-232 USB-to-serial converterInstant Plug & Play The UPort™ 2410 USB-to-serial converter allows you to connect 4 RS-232 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort™ 2410 is a cost-effective solution for both new and legacy RS-232 devices, and is perfect for mobile, instrumentation, and point-of sale applications. Features Hi-Speed USB 2.0 for up to 480 Mbps USB transmission 921.6 Kbps maximum baudrate for super fast data transmission Additional I/O and IRQ not needed Built-in 15 KV ESD protection for all serial ports Certified drivers provided for Windows (including Vista), and Linux Supports Fixed-Base COM Utility for setting the initial extended COM port number Easy monitoring with LEDs and management software Specifications • USB Compliance USB 1.1/2.0 compliant Connector(s) USB type B Speed 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) • Serial Interface Serial Standards RS-232 Number of Ports 4 Connectors DB9 male • Serial Line Protection ESD Protection 15 KV embedded • Performance Baudrate 50 bps to 921.6 Kbps • Serial Communication Parameters Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS I/O Address Assigned by BIOS IRQ Assigned by BIOS FIFO 16 bytes • Serial Signals RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND • Driver Support Operating Systems Windows (2000, XP/2003/Vista/2008 x86/x64), Linux 2.6 x86/x64 • Physical Characteristics Housing Polycarbonate (PC) Dimensions 80 x 35 x 185 mm (3.15 x 1.38 x 7.28 in) • Environmental Limits Operating Temperature 0 to 55°C (32 to 131°F) Operating Humidity 5 to 95% RH Storage Temperature -20 to 75°C (-4 to 167°F) Regulatory Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, FCC Part 15 Class B • Warranty Warranty Period 5 years
