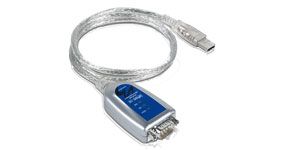

UPort 1150/1150I 1-port RS-232/422/485 USB-to-serial converters with 2 KV isolation protection (optional) Features and Benefits Compatible with USB 2.0 12 Mbps USB data rate Software selectable RS-232, RS-422, 4-wire RS-485, and 2-wire RS-485 Certified drivers provided for Windows (including Vista), WinCE 5.0, and Linux 15 KV ESD protection for all serial ports 2 KV optical isolation protection (UPort™ 1150I) Full modem status LEDs for UPort™ 1150I Instant Plug & Play The UPort™ 1150/1150I USB-to-serial converters allow you to connect 1 RS-232/422/485 device to your laptop or workstation through the USB (Universal Serial Bus) port. These plug & play USB solutions are compatible with both new and legacy RS-232/422/485 devices, and are perfect for mobile, instrumentation, and point-of sale applications. Simplified, Hassle-free Serial Port Expansion USB plug & play makes serial port expansion easy, and does not require IRQ, DMA, or I/O address resources. Users no longer need to open the chassis or power down the system to add COM ports, saving on setup time and cost. • USB Compliance USB 1.0/1.1 compliant, USB 2.0 compatible Connector(s) UPort™ 1150: USB type AUPort™ 1150I: USB type B Speed 12 Mbps (Full-Speed USB) • Serial Interface Serial Standards RS-232/422/485 Number of Ports 1 Connector(s) DB9 male • Serial Line Protection ESD Protection 15 KV embedded Optical Isolation Protection 2 KV (UPort™ 1150I only) • Performance Baudrate 50 bps to 921.6 Kbps • Serial Communication Parameters Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS, XON/XOFF I/O Address Assigned by BIOS IRQ Assigned by BIOS FIFO 64 bytes • Serial Signals RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND RS-422 TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-4w TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND RS-485-2w Data+(B), Data-(A), GND • Driver Support Operating Systems Windows (2000, XP x86/x64, 2003 x86/x64, Vista x86/x64), WinCE 5.0, Linux 2.4 x64, 2.6 x86/x64 • Physical Characteristics Enclosure UPort™ 1150: ABS + PCUPort™ 1150I: SECC sheet metal (1 mm), IP30 protection Weight Product only:UPort™ 1150: 60 g (0.19 lb)UPort™ 1150I: 80 g (0.16 lb)Packaged:UPort™ 1150: 181 g (0.43 lb)UPort™ 1150I: 195 g (0.40 lb) Dimensions UPort™ 1150: 37.5 x 60 x 20.5 mm (1.48 x 2.36 x 0.81 in)UPort™ 1150I: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) • Environmental Limits Operating Temperature 0 to 55°C (32 to 131°F) Operating Humidity 5 to 95% RH Storage Temperature -20 to 70°C (-4 to 158°F) Regulatory Approvals EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC-61000-4-6, IEC 61000-4-8, IEC-61000-4-11, FCC Part 15 Class B • Power Requirements Power Consumption UPort™ 1150: 77 mA @ 5 VDCUPort™ 1150I: 260 mA @ 5 VDC • Warranty Warranty Period 5 years Model No. Description UPort 1150 1-port RS-232/422/485 USB-to-serial converter UPort 1150I 1-port RS-232/422/485 USB-to-serial converter with optical isolation protection
