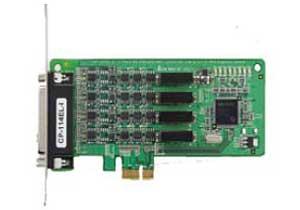

CP-114EL-I-DB9M 4-port RS-232/422/485 low profile PCI Express x1 serial board with optical isolation (includes DB9 male cable) CP-114EL 4-port RS-232/422/485 PCI Express boards with optional 2 KV isolation The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards designed for POS and ATM applications. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows and Linux. In addition, each of the boards' 4 RS-232/422/485 serial ports supports a super fast 921.6 Kbps baudrate. The CP-114EL and CP-114EL-I provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express"x1" classification allows the boards to be installed in any PCI Express slot. Highlights PCI Express x1 compliant 921.6 Kbps maximum baudrate for super fast data transmission 128-byte FIFO and on-chip H/W, S/W flow control Low profile form factor fits small-sized PCs Drivers provided for Windows (2000, XP/2003/Vista/2008 x86/x64),Linux 2.4, Linux 2.6 (x86/x64), QNX 6, Windows XP Embedded, SCO OpenServer 5/6, UnixWare 7 15 KV ESD protection on the board Specifications:Comm. Controller16C550C compatibleBusPCI Express x1ConnectorDB44 femaleNumber of Ports4Serial StandardsRS-232/422/485ESD Protection15 KV on the boardOptical Isolation2 KV Operating SystemsWindows (2000, XP/2003/Vista/2008 x86/x64), Linux 2.4, Linux 2.6 (x86/x64), QNX 6, Windows XP Embedded, SCO OpenServer 5/6, UnixWare 7DimensionsCP-114EL 67.21 x 103.58 mm (2.69 x 4.08 in)CP-114EL-I 67.21 x 136.93 mm (2.69 x 5.48 in)Operating Temperature0 to 55°C (32 to 131°F)
