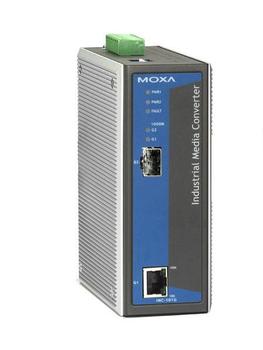

IMC-101G Series Industrial Gigabit Ethernet to fiber media converter 10/100/1000BaseT(X) and 1000BaseSX/LX/LHX/ZX supported Link Fault Pass-Through (LFP) (media converters should work as a pair) Power failure, port break alarm by relay output Redundant power input -40 to 75°C operating temperature range (T models) Designed for hazardous locations The IMC-101G industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G's industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and are available in models that support a standard operating temperature range of 0 to 60°C, and an extended operating temperature range of -40 to 75°C. • Technology: Standards IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3ab for 1000BaseT(X)IEEE 802.3z for 1000BaseSX/LX/LHX/ZX • Interface: RJ45 Ports 10/100BaseT(X) Fiber Port(s) Optional 1000BaseSX/LX/LHX/ZX (LC connector) LED Indicators PWR1, PWR2, FAULT, 10/100M (TP port), 1000M (TP and Fiber port) DIP Switches Port break alarm mask, Fault Pass-Through, Fiber AN/Force Alarm Contact One relay output with current carrying capacity of 1A @ 24 VDC • Optical Fiber: Distance Multi mode:1000BaseSX: 0 to 500 m, 850 nm (50/125 µm, 400 MHz*km)0 to 275 m, 850 nm (62.5/125 m, 200 MHz*km)1000BaseLX: 0 to 1100 m, 1310 nm (50/125 m, 800 MHz*km)0 to 550 m, 1310 nm (62.5/125 m, 500 MHz*km)Single mode:1000BaseLX: 0 to 10 km, 1310 nm (9/125 m, 3.5 PS/(nm*km))1000BaseLHX: 0 to 40 km, 1310 nm (9/125 m, 3.5 PS/(nm*km))1000BaseZX: 0 to 80 km, 1550 nm (9/125 m, 19 PS/(nm*km)) • Power Requirements: Input Voltage 24 VDC (12 to 45 VDC), redundant inputs Input Current (@ 24 V): 0.11A Overload Current Protection 1.1A Connection Removable terminal block Reverse Polarity Protection Present • Physical Characteristics: Enclosure IP30 protection, metal case Weight 630 g Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) Installation DIN-Rail or Wall Mounting (optional kit) • Environmental Limits: Operating Temperature 0 to 60°C (32 to 140°F),-40 to 75°C (-40 to 167°F) for T models Storage Temperature -40 to 85°C (-40 to 185°F) Ambient Relative Humidity 5 to 95% (non-condensing) • Agency Approvals: EMI FCC Part 15, CISPR (EN55022) class A EMS EN61000-4-2 (ESD), level 3EN61000-4-3 (RS), level 3EN61000-4-4 (EFT), level 3EN61000-4-5 (Surge), level 2EN61000-4-6 (CS), level 3EN61000-4-8EN61000-4-11 Safety UL508 Shock IEC60068-2-27 Freefall IEC60068-2-32 Vibration IEC60068-2-6 MTBF (meantime between failures) 500,000 hrsDatabase: Telcordia (Bellcore), GB • Warranty: Warranty Period 5 yearsFiber Media Converters Model No. Description IMC-101G Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, 0 to 60°C IMC-101G-T Industrial 10/100/1000BaseT(X) to 1000BaseSX/LX/LHX/ZX media converter, -40 to 75°C
