MOXA EDS-308-SS-SC-T

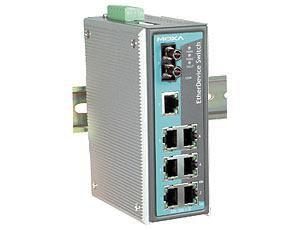

MOXA EDS-308-SS-SC-T (40296)

MOXA EDS-308-SS-SC-T

Artikelnr:
40296
  • Produkt Ethernet
  • Portar 8
  • Hastighet 100Mbps
10 166:-
12 707,50 inkl. moms
Inte i lager
Kontakta mig när varan finns i lager
Antal:
Lägg i kundvagn
Beskrivning

EDS-305/308 Series

5 and 8-port unmanaged Ethernet switches

  • Redundant dual 24 VDC power inputs
  • Relay output warning for power failure and port break alarm
  • Broadcast storm protection
  • Transparent transmission of VLAN tagged packets
  • -40 to 75?C operating temperature range (T models)

The EDS-305/308 are 5-port and 8-port Ethernet switches that provide an economical solution for your industrial Ethernet connections. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments, such as in hazardous locations (Class I, Div. 2/ATEX). The switches comply with FCC, TÜV, UL, and CE standards, and come in two model types. Standard operating temperature range models (0 to 60°C) and wide operating temperature range models (-40 to 75°C). Both models undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-305/308 switches can be installed easily on a DIN-Rail or in a distribution box.

• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for Flow Control
Processing Type Store and Forward
Flow Control IEEE 802.3x flow control, back pressure flow control
• Switch Properties
MAC Table Size 1 K (EDS-305/308/309), 4 K (EDS-316)
Packet Buffer Size n/a (EDS-305), 512 Kbit (EDS-308/309), 1.25 Mbit (EDS-316)
• Interface
Fiber Ports 100BaseFX ports (SC/ST connector)
RJ45 Ports 10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
DIP Switches
• Port break alarm mask
• Enable/disable broadcast storm protection (EDS-316)
LED Indicators PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port)
Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC
• Optical Fiber
• Power Requirements
Input Voltage 24 VDC (12 to 48 VDC), redundant dual inputs
Input Current EDS-305: 0.13 A @ 24 V
EDS-305-M/S: 0.17 A @ 24 V
EDS-308: 0.13 A @ 24 V
EDS-308-M/S: 0.21 A @ 24 V
EDS-308-MM/SS: 0.26 A @ 24 V
Overload Current Protection EDS-305, EDS-305-M, EDS-305-S, EDS-308: 1.1 A
EDS-308-M/S/MM/SS,: 1.6 A
Connection 1 removable 6-pin terminal blocks
Reverse Polarity Protection Present
• Physical Characteristics
Housing Metal, IP30 protection
Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight 790 g
Installation DIN-Rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Standards and Certifications
Safety EDS-305 Series: UL 508, UL 60950-1, CSA C22.2 No. 60950-1
EDS-308Series: UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1
Hazardous Location UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nC IIC (EDS-316 Series V2.0 pending)
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) (EDS-305/308: Level 2; EDS-309/316: Level 3)
Marine DNV, GL
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time EDS-305 series: 422,000 hrs
EDS-308 series: 255,000 hrs
Database MIL-HDBK-217F, GB 25°C
• Warranty
Warranty Period 5 years
  Model No. Description
EDS-305 Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, 0?to?60°C operating?temperature
EDS-305-M-SC Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, 0?to?60°C operating?temperature
EDS-305-M-SC-T Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, -40?to?75°C operating?temperature
EDS-305-M-ST Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector, 0?to?60°C operating?temperature
EDS-305-M-ST-T Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with ST connector, -40?to?75°C operating?temperature
EDS-305-S-SC Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, 0?to?60°C operating?temperature
EDS-305-S-SC-80 Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector for 80 km transmission, 0 to 60°C operating temperature
EDS-305-S-SC-T Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, -40?to?75°C operating?temperature
EDS-305-T Unmanaged Ethernet switch with 5 10/100BaseT(X) ports, -40?to?75°C operating?temperature
EDS-308 Unmanaged Ethernet switch with 8 10/100BaseT(X) ports, 0?to?60°C operating?temperature
EDS-308-MM-SC Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 0?to?60°C operating?temperature
EDS-308-MM-SC-T Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40?to?75°C operating?temperature
EDS-308-MM-ST Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connector, 0?to?60°C operating?temperature
EDS-308-MM-ST-T Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connector, -40?to?75°C operating?temperature
EDS-308-M-SC Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, 0?to?60°C operating?temperature
EDS-308-M-SC-T Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX multi-mode port with SC connector, -40?to?75°C operating?temperature
EDS-308-S-SC Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, 0?to?60°C operating?temperature
EDS-308-S-SC-80 Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector for 80 km transmission, 0?to?60°C operating?temperature
EDS-308-S-SC-T Unmanaged Ethernet switch with 7 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, -40?to?75°C operating?temperature
EDS-308-SS-SC Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, 0?to?60°C operating?temperature
EDS-308-SS-SC-80 Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors for 80 km transmission, 0?to?60°C operating?temperature
EDS-308-SS-SC-T Unmanaged Ethernet switch with 6 10/100BaseT(X) ports, and 2 100BaseFX single-mode ports with SC connectors, -40?to?75°C operating?temperature
EDS-308-T Unmanaged Ethernet switch with 8 10/100BaseT(X) ports, -40?to?75°C operating?temperature
