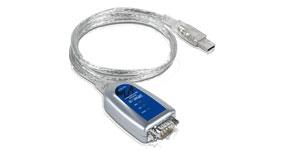

UPort 1110 1-port RS-232 USB-to-serial converters Features and Benefits Compatible with USB 2.0 12 Mbps USB data rate 921.6 Kbps maximum baudrate for super fast data transmission Drivers provided for Windows (including Vista), WinCE 5.0, and Linux DB9 male connector for RS-232 LEDs for indicating USB and TxD/RxD activity 15 KV ESD protection for all serial ports Instant Plug & Play The UPort™ 1110 USB-to-serial converters is the perfect accessory for laptop computers that doesn't have a serial port. The UPort™ 1110 converts from USB to RS-232. This product is compatible with new and legacy RS-232 devices, and can be used with mobile, instrumentation, and point-of-sale applications. • USB Compliance USB 1.0/1.1 compliant, USB 2.0 compatible Connector(s) USB type A Speed 12 Mbps (Full-Speed USB) • Serial Interface Serial Standards UPort™ 1110: RS-232 Number of Ports 1 Connector(s) DB9 male ESD Protection 15 KV embedded • Serial Line Protection ESD Protection 15 KV embedded • Performance Baudrate 50 bps to 921.6 Kbps • Serial Communication Parameters Data Bits 5, 6, 7, 8 Stop Bits 1, 1.5, 2 Parity None, Even, Odd, Space, Mark Flow Control RTS/CTS, XON/XOFF I/O Address Assigned by BIOS IRQ Assigned by BIOS FIFO 64 bytes • Serial Signals RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND • Driver Support Operating Systems Windows (98/ME/2000, XP x86/x64, 2003 x86/x64,Vista x86/x64), WinCE 5.0, Linux 2.6 x86/x64, Linux 2.4 x86/x64 • Physical Characteristics Enclosure ABS + PC Weight Product only: 85 g (0.19 lb)Packaged:UPort™ 1110: 170 g (0.37lb) Dimensions 37.5 x 60 x 20.5 mm (1.48 x 2.36 x 0.81 in) • Environmental Limits Operating Temperature 0 to 55°C (32 to 131°F) Operating Humidity 5 to 95% RH Storage Temperature -20 to 70°C (-4 to 158°F) Regulatory Approvals EN55022 Class B, EN55024, EN61000-3-2,EN61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC61000-4-5, IEC 61000-4-8, FCC Part 15 Class B • Power Requirements Power Consumption UPort™ 1110: 30 mA @ 5 VDC • Warranty Warranty Period 5 years
