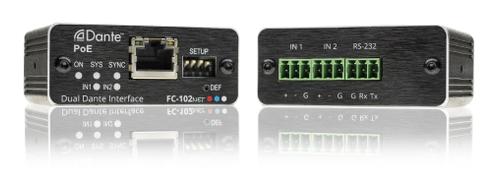

KRAMER FC-102Net | 2–Channel Dante Encoder & PoE Acceptor |

FC-102Net

• Dante Network Interface.
• PoE Acceptor.
• Interoperability — Supports AES67 and Dante allowing high–performance interoperability between IP–based audio networking systems.
• Inputs — 2 balanced mono audio on a 3–pin terminal blocks.
• Output — 2 Dante channels on an RJ–45 connector.
• Output Volume Control.
• Versatile Control — Via the Dante IP control matrix and Kramer Protocol 3000 via RS–232 connection.
• Professional, Studio Grade Signal Conversion Technology — Includes the latest generation 32–bit advanced Digital Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
• Easy Installation — Single twisted–pair cable for signal and power wiring. Compact PicoTOOLS® fan–less enclosure for device–back mounting, or side–by–side mounting of 4 units in a 1U rack space with the recommended rack adapter.

• 2 Balanced Mono Mic / Line Level Source: On 3–pin terminal blocks

• 1 Dante: On an RJ–45 connector
• 1 RS-232: On a 3–pin terminal block

• Control: Dante IP control matrix, Kramer Protocol 3000 via RS–232, audio input configuration DIP–switches, reset button
• Inicators: Power, Dante network, input selection and digital operation LEDs

• Source: 48V DC (PoE)
• Consumption: 100mA

• Size: PicoTOOLS®
• Type: Aluminum
• Cooling: Convection ventilaion

• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: –40° to +70°C (–40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing

• Safety: CE
• Environmental: RoHs, WEEE

• 6.22cm x 5.18cm x 2.44cm (2.45" x 2.04" x 0.96" ) W, D, H

• 0.1kg (0.3lbs) approx.

• 49.00cm x 18.60cm x 58.80cm (19.29" x 7.32" x 23.15" ) W, D, H

• 0.2kg (0.5lbs) approx.
