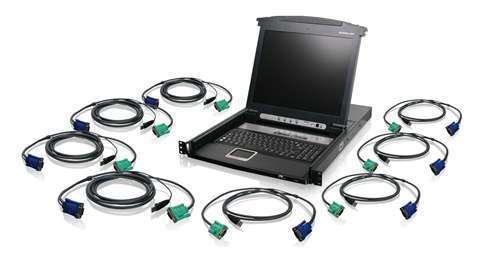

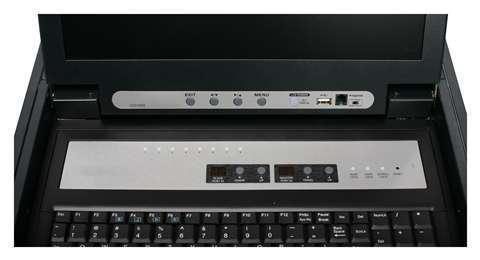

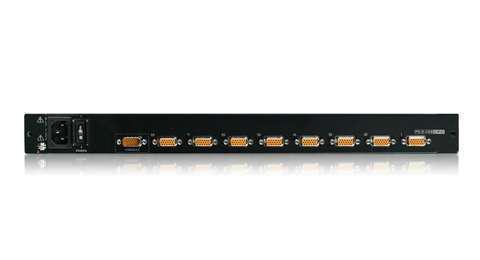

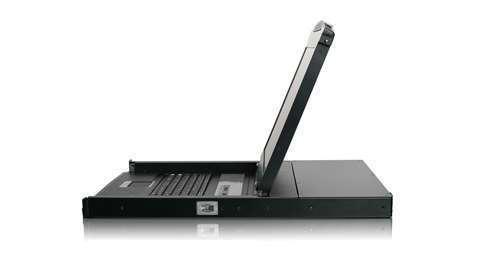

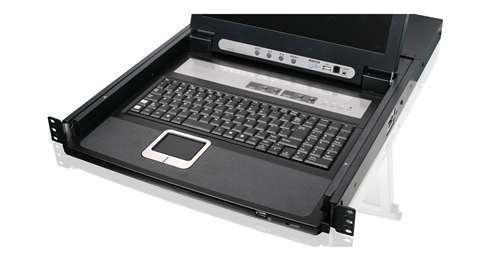

8-Port LCD Combo KVM Switch with USB KVM Cables GCL1808KITU IOGEAR’s GCL1808KITU is an integrated LCD console and 8 port KVM (keyboard, video, and mouse) switch with bundled USB KVM cables that offers secure access to 8 VGA, USB computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space. The GCL1808KITU supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1808KITU supports USB** peripheral devices to be used for system upgrades with the attached computers. A single GCL1808KITU can control up to 8 computers. As many as 8 additional compatible KVM switches can be cascaded to reach up to 128 computers* controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and hotkeys. Features Integrated 8-port KVM console featuring a 17" TFT LCD active matrixmonitor, keyboard and touchpad 1280 x1024 resolutionon 17" rack mountLCD provides asharpvideo display Equipped with8 USB KVM Cables Adjustable depth to fit different sizes of racks Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux® Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys External USB mouse port for convenience External USB or PS/2 withVGAConsole port USB media port support for attached USB computers (system upgrades, etc)** Cascade up to 2 levels - control up to128 computers from a single console* Security - 2 level password protection for OSD DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor Rack mountable in a 19" (1U) system rack Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation Fully Supports DDC2B Warranty: 3-YEAR Specifications Function GCL1808KITU Computer Connections Direct 8 Daisy Chain or Cascading 128 Port Selection OSD, Hotkeys, Pushbuttons Connectors Console 1 x SPHD-18 Male Power 1 x 3-Prong AC Socket Console Connectors Monitor 1 x HDB-15 Female Keyboard PS/2 or USB Mouse PS/2 or USB Extra Mouse 1 x USB Type A Female Flash ROM Upgrade 1 x RJ-11 Female CPU Connectors Keyboard, Mouse, and Monitor 8 x SPHD-15 Female Switches Reset 1 x Semi-recessed Pushbutton Power 1 x Rocker Switch F/W Upgrade 1 x Switch LCD Adjustment 4 x Pushbutton LCD Power 1 x LED Pushbutton (Orange) Port Selection 4 x Pushbutton LEDs On Line 8 (Orange) Port ID 4 x 7 Segment LED Display (Yellow) Power On Dark Green Emulation Keyboard PS/2, USB Mouse PS/2, USB Video Resolution 1280 x 1024 @ 75Hz; DDC2B Scan Interval 1-255 Seconds Power Input Rating Per AC Power Inlet, 50/60Hz 100~240VAC. 50/60Hz, 1A Power Consumption 120V, 28W Environment Operation Temperature 0~40°C Storage Temperature -20~60°C Humidity 0~80% RH; Non-condensing Housing Case Metal and Plastic Dimensions GCL1808KITU Unit Dimensions Width 19in. Height 1.75in. Depth 25in. Unit Package Dimensions Width 30.25in. Height 6.5in. Depth 37.25in. Weight Unit Pack Wt. 51.63lb Unit Wt. w/accessories 36.67lb Unit Wt. 27.78lbRequirements Computers: VGA, SVGA, or MultiSync video graphics card with an HDB-15 port PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port Package Content 1 x 8-Port LCD Combo KVM Switch 4 x USB KVM Cable (6ft - G2L5202U) 4 x USB KVM Cable (10ft - G2L5203U) 1 x PS/2 KVM Cab le (6ft - G2L5202P) 1 x Console Cable 1 x Cascade Cable 1 x Firmware Upgrade Cable 1 x Grounding Wire 1 x Power Cord 1 x Installation Guide 1 x Warranty Card
