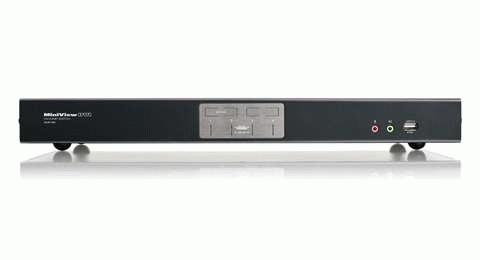

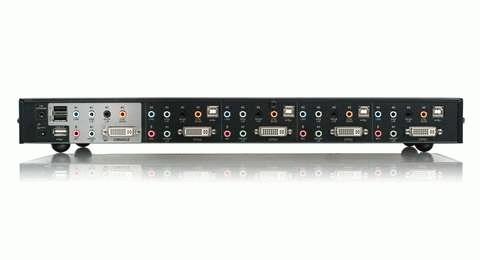

4-Port Dual Link DVI KVMP Switch with 7.1 Audio and Cables GCS1784 IOGEAR's GCS1784 4-Port Dual Link DVI KVMP Switch with 7.1 Audio marks a revolutionary step in KVM functionality by combining IOGEAR's Display Emulation Technology with the widescreen graphics resolution of today's 30+ inch monitors, supporting Dual Link DVI, 2560 x 1600 (higher than 1080p HD) and ultra-high resolution up to 3840 x 2400. This advanced KVMP can increase efficiency and save equipment cost for applications where high resolution, large or widescreen monitors are required, such as: • CAD (Computer Aided Design) and CAM (Computer Aided Manufacturing) • Desktop Publishing / Graphic Design / Video Editing • Medical / Surgical / Diagnostic Displays • High-End Gaming, where high and ultra-high video resolution is demanded The GCS1784 is equipped with IOGEAR's Display Emulation Technology which remembers your monitor's ideal resolution and refresh rate (EDID), making it possible to boot all your computers simultaneously, switch back and forth between computers, and still maintain the ideal video settings of the monitor. It also features two USB 2.0 peripheral ports for asynchronously sharing USB devices between your computers. A powered USB hub may be attached to the peripheral ports for added functionality. Completing the GCS1784 is its support for 7.1 surround sound systems, ideal for Blu-Ray Discs, High-End Gaming, and Video Editing. It offers an out-of-box solution including all cabling required for “Set-up and Go”! Features One console controls four computers 2-port USB 2.0 peripheral hub [ backward compatible with USB 1.1 ] Share a 7.1 audio surround sound system Asynchronous hotkey switching between KVM focus, USB peripheral, and Audio ports Switching "Beep", mutable via hotkeys Complete keyboard and mouse emulation for error free booting and real-time switching IOGEAR's Display Emulation Technology reads and remembers the monitor's parameters (EDID) so the user doesn't experience delays or change in video resolution when switching between or booting computers Supports MAC keyboards and special keys Maximum video resolutions: DVI-D Dual link: 2560 x 1600 DVI-D Single link: 1920 x 1200 Supports Special monitors to 3840 x 2400 Full support for DDC, DDC2, and DDC2B monitors Firmware upgradeable DVI compatible, HDCP Compliant Out-of-Box solution including all cabling Warranty: 3-YEAR Requirements - USB Keyboard and mouse - Single or Dual Link DVI video card* - An available USB port on each computer Optional - 5.1 or 7.1 sound card - Appropriate speaker system - Microphone * If you wish to connect a VGA output you will need to purchase third party DVI-I video cables and VGA to DVI adapters. Ensure your LCD monitor will work with an Analog output. Package Content 1 x 4 Port USB 2.0 DVI KVMP Switch with 7.1 Surround Sound Audio 4 x Custom Dual Link Cables 4 x 7.1 Audio cables 1 x USB-to-PS/2 Converter 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x User Manual 1 x Registration form Specifications Function GCS1784 Computer Connections Direct 4 Port Selection Hotkey, Push Button Console Connectors Mouse 1 x USB Type A Female Keyboard 1 x USB Type A Female Monitor 1 x Dual Link DVI-I Female Flash ROM Upgrade 1 x 4-conductor 3.5mm Jack (Black) Connectors-Audio(console) Center/Subwoofer 1 x Mini Stereo Jack Female (Orange) Line In 1 x Mini Stereo Jack Female (Blue) Line Out 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) Rear Speaker Out 1 x Mini Stereo Jack Female (Black) Side Speaker Out 1 x Mini Stereo Jack Female (Grey) CPU Connectors Keyboard & Mouse 4 x USB Type B Female Monitor 4 x Dual Link DVI-I Female Connectors-Audio(CPU) Center/Subwoofer 1 x Mini Stereo Jack Female (Orange) Line In 1 x Mini Stereo Jack Female (Blue) Line Out 1 x Mini Stereo Jack Female (Green) Microphone 1 x Mini Stereo Jack Female (Pink) Rear Speaker Out 1 x Mini Stereo Jack Female (Black) Side Speaker Out 1 x Mini Stereo Jack Female (Grey) Peripheral Sharing 2 x USB 2.0 Type A Female LEDs Selected 4 (Orange) USB Peripherals 4 (Green) Emulation Keyboard USB Mouse USB Video Resolution DVI-D: 2560 x 1600 @60Hz (Dual Link); 1920 x 1200 @60Hz (Single Link); 3840 x 2400 @13Hz (Single Link); DVI-A: 2048 x 1536; DDC2B Scan Interval 1-99 sec (5 sec default) Power Voltage DC 5.3V Amps 2.4A Environment Operation Temperature 0~50˚C Storage Temperature -20~60˚C Humidity 0~80% RH, Non-condensing Housing Case Metal Dimensions GCS1784 Unit Dimensions Width 17in. Height 2.25in. Depth 6.125in. Unit Package Dimensions Width 22.125in. Height 9.625in. Depth 8.25in. Master Carton Width 22.875in. Height 10.75in. Depth 25.5in. Master Carton Qty. 3 Weight Master Carton Wt. 43.4lb Unit Pack Wt. 13.6lb Unit Wt. w/accessories 10.8lb Unit Wt. 6lb.
