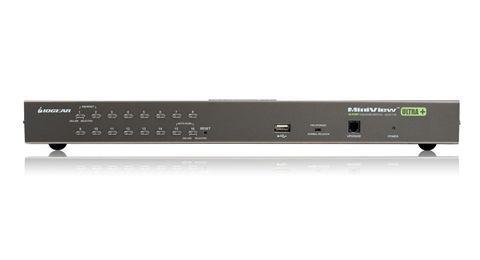

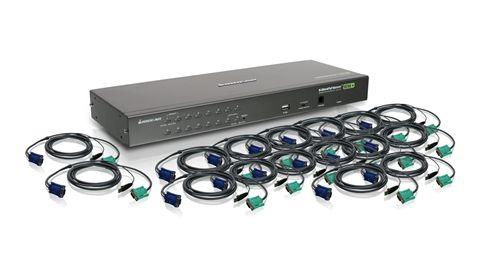

16-Port USB PS/2 Combo KVM Switch with Cables GCS1716KITU The GCS1716KITU KVM is a combo switch with USB KVM cables included; allowing access and control of up to 16 directly connected computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack. The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected. GCS1716KITU Included Cables: 16 x 10ft (3M) USB KVM cable (G2L5203U) Features:Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux® Easy to operate - computer selection via front panel LED’s, intuitive OSD (on screen display), and hotkeys Cascade up to 2 levels - control up to 256 computers from a single console Security - 2 level password protection for OSD Maximum video resolution: up to 2048 x 1536 Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals Rack mountable in a 19" (1U) system rack Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation Fully Supports DDC2B Specifications: Function GCS1716KITU Computer Connections Direct 16 Daisy Chain or Cascading 256 (via Cascade) Port Selection Hotkeys, OSD, Button Connectors Console 1 x SPHD-18 Male (Yellow) Computer/KVM 16 x SPHD-15 Female (Yellow) Power 1 x DC Jack USB 1 x USB 1.1 Type A Female Reset Switch 1 x Semi-Recessed Push Button Switches F/W Upgrade 1 x Slide Switch Port Selection 16 x Push Button Emulation Keyboard PS/2, USB Mouse PS/2, USB Video Resolution VGA 2048x1536, DDC2B Power Voltage DC 5.3V Amps 2.4A Scan Interval 1-255 sec Environment Operation Temperature 0~50C Storage Temperature -20~60C Humidity 0~80% RH, Non-condensing Housing Case Metal Dimensions GCS1716KITU Unit Dimensions Width 17in. Height 1.75in. Depth 6.25in. Unit Package Dimensions Width 10.25in. Height 9.625in. Depth 22.375in. Weight Unit Pack Wt. 20.04lb Unit Wt. w/accessories 17.26lb Unit Wt. 6.02lbSystem requirements:Console: VGA, SVGA, or MultiSync Monitor A Keyboard and Mouse (USB or PS/2) Computers: VGA, SVGA, or MultiSync video graphics card with an HDB-15 port PS/2 mouse and keyboard ports (6-pin mini DIN) and at least 1 USB port Multi OS Platform Support: PC / Mac / Sun / Linux Package contents:1 x GCS1716, 16-Port Combo KVM 1 x 2M USB KVM cable (G2L5202U) 1 x 2M PS/2 KVM cable (G2L5202P) 16 x 3M USB KVM cable (G2L5203U) 1 x Console cable 1 x Cascade cable 1 x Firmware upgrade cable 1 x Grounding wire 1 x Foot pad set (4 pads) 1 x Power adapter 1 x Installation Guide 1 x Warranty Card 1 x Standard Rack Mounting Kit
