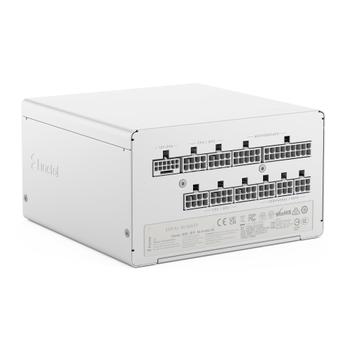

Ion 3 Gold 1000W White FD-P-IA3G-101 Ion 3 Gold delivers efficient, stable power for next-generation gaming systems. With ATX12V 3.1 compatibility, native PCIe Gen 5 support, and 80 PLUS Gold efficiency, it’s built for reliable, long-term performance. Specifications: General Wattage 1000W PSU specification compliance PSU specification compliance ATX12V 3.1 Efficiency Certification 80PLUS® Gold Modular cables Fully modular Fan type Momentum 14 series fan, with Fluid Dynamic Bearing Semi-passive operation Yes, user selectable (Zero RPM mode) DC cable type UltraFlex, flat cables Cable Color Black PSU: Black, White PSU: White Electrolytic capacitors 105°C Japanese capacitors Number of 12V rails Single 12V rail Protection features Over Power Protection (OPP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Current Protection (OCP), Over Temperature Protection (OTP) Life expectancy (MTBF) 100 000 h (25°C ambient temperature) Modern sleep state compatibility C6 and C7 compatible Power factor correction (PFC) Yes, active Input voltage 100-240 V Standby efficiency ≥ 45% ErP Lot 6 compliant Maximum operating temperature 40°C (full load), 50°C (80% load) Approvals & certifications CE, UKCA, BSMI, CCC, FCC, TUV, cULus, RCM, ICES, CB, KC Warranty 10 years Included modular cables ATX 24 pin, 600 mm 1 ATX 12V 4+4P, 700 mm 2 PCI-E 6+2 pin, 650 mm 3 PCI-E Gen5 12V-2x6, 700 mm 1 4x SATA, 400+150+150+150 mm 2 2x SATA 650+150 mm 1 Total number of SATA connectors 10 2x Peripheral (Molex) 650+150 mm 1 Total number of Molex connectors 2 Other Package contents Ion 3 Gold power supply unit, Modular cables, Accessory kit, User manual, Power cord (regional) Unit dimensions (LxWxH) 150 x 150 x 86 mm Net weight (unit only) 1.8 kg Package dimensions (LxWxH) 354 x 189 x 122 mm Package weight 3.3 kg EAN Black: 7340172710271, White: 7340172710288 UPC Black: 843276110277, White: 843276110284 Product code Black: FD-P-IA3G-100, White: FD-P-IA3G-101
