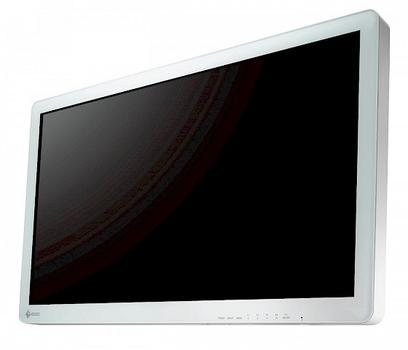

EIZO 31.5IN LED 1920X1080 1400:1CURATOR EX3220 MNTR

CuratOR EX3220

• 31.5-inch LCD monitor with full HD resolution (1920 x 1080 pixels)
• Powerful LED backlight with 650 cd/m² luminance for optimal viewing in bright operating rooms
• High IP rating and fanless design ideal for maintaining a sterilized OR environment
• Sleek design with fully-flat protective glass and rounded corners for comfort and safety in the operating room

• Cabinet Color White
• Certifications & Standards CE （Medical Device Directive）, EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-A, FCC-A, CAN ICES-3(A), RCM, RoHS, China RoHS, WEEE, CCC, EAC
• FDA Class I
• AC power cord, AC adapter, cable cover, Utility Disk (PDF installation manual), instructions for use

• Type Color (IPS)
• Backlight LED
• Size 80.1 cm / 31.5"
• Native Resolution 1920 x 1080 (16:9 aspect ratio)
• Viewable Image Size (H x V) 698 x 393 mm
• Pixel Pitch 0.364 x 0.364 mm
• Display Colors 10-bit colors (SDI) : 1.07 billion (maximum) colors,
• 8-bit colors: 16.77 million colors
• Viewing Angles (H / V, typical) 178° / 178°
• Brightness (typical) 650 cd/m²
• Contrast Ratio (typical) 1400:1
• Response Time (typical) 16 ms (On/Off)

• Input Terminals BNC (3G-SDI) x 2, BNC (Composite) x 1, BNC (RGB C-Sync or Component) x 1 set, S-Video x 1, DVI-D x 2 (with HDCP), D-Sub 15 pin (mini) x 1
• Output Terminals BNC (3G-SDI) x 2, BNC (Composite) x 1, BNC (RGB C-Sync or Component) x 1 set, S-Video x 1, DVI-D x 1
• Digital Scanning Frequency (H / V) 15 - 75 kHz / 24 - 60 Hz
• Analog Scanning Frequency (H / V) 15 - 80 kHz / 24 - 85 Hz
• Sync Formats Separate, Composite, Sync on green

• Power Requirements AC 100 - 240 V: 50 / 60 Hz
• Maximum Power Consumption 97 W

• Miscellaneous Remote control (RS-232C, GPI)

• Degree of Protection IP45 (Front), IP32 (Rear)

• Net Weight (Without Stand) 9.9 kg
• Hole Spacing (VESA Standard) 200 x 200 mm, M6, depth 7 - 10 mm
• 100 x 100 mm, M4, depth 5 - 9 mm
