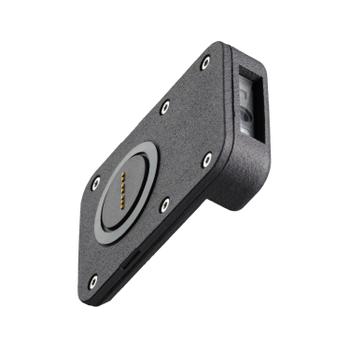

CROSSCALL X-SCAN Optical Scanner Module The X-SCAN module turns your Crosscall smartphone into a mobile, all-terrain scanning solution. Specifications: Optical system / sensor : CMOS sensor 640 x 480 Read head capacity : Up to 60 scans per second Light source (wavelength) : 650 nm laser diode Depth of field EAN 13 (13 mil) : 105 to 680 mm Depth of field Code 39 (20mil) : 65 to 800 mm Depth of field Code 39 (5 mil) : 120 to 260 mm QR Code depth of field (15 mil) : 80 to 250 mm Playback contrast Min. : 20% Scan mode (manual / continuous / both) : Manual and continuous (detection) Reading on a tablet phone screen : Yes Playback rotation angle : 360° Tilt angle reading angle : +/- 60° Playback angle H/V : 28°/21° Natively supported 1D codes : Code 128 - EAN13 - EAN8 - Code 39 - Interleaved 2 of 5 - Code 93 - GS1 128 - ISBN - ISSN 2D codes natively supported : Aztec - Data Matrix - QR Code - PDF417 1D codes additionally supported via SDK : UPC-E - UPC-A - Febraban - ITF 14 - ITF 6 - Matrix 2 of 5 - Codabar - GS1 Databar - Code 11 - - Industrial 25 - Standard 25 - Plessey - MSI-Plessey - AIM 128 2D codes additionally supported via SDK : Micro QR code Power consumption (playback - standby) : 176 mA - 11.8 mA Power supply - Typical consumption : 5V - 581 mW Materials : Polymer resin Operating temp. : -20°C / +60°C Storage temperature : -40°C / +70°C Relative humidity : 5% to 95% (non-condensing) Maximum ambient light : 100000 Lux Index of protection X-SCAN attached to phone) : IP62 Certification : CE CEM, RoHS, WEEE Laser class : Class 1 Connector : X-LINK™ Dimensions : X-SCAN 43.6 x 14.9 x 61.4 mm / X-SCAN on X-LINK™ (without X-BLOCKER) 43.6 x 14.15 x 61.4 mm Weight : 24 g (excluding X-BLOCKER) Application / Setup : X-TRACK application
