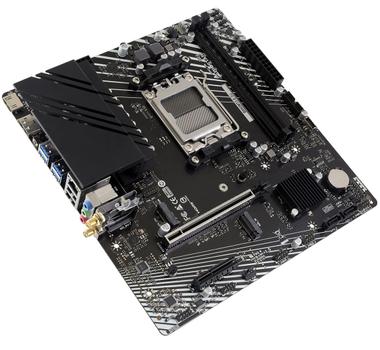

BIOSTAR B850MT2-E DJ (B850,AM5,mATX,DDR5)

B850MT2-E DJ

• Supports AMD Ryzen™ 9000 / 8000 / 7000 series Processors
• AMD B850 single chip architecture
• Supports 2-DIMM DDR5 up to 128 GB Memory
• Supports PCIe 4.0 M.2
• Supports HDMI® & Display Port
• Supports 2.5 GbE LAN
• Supports USB 3.2 Gen2 Type C
• Supports WiFi 7 & 6E module (No WiFi card included)

• AMD B850

• Socket AM5 support AMD Ryzen™ 9000 / 8000 / 7000 series Processors
• Support for future AMD Ryzen processors with BIOS update

• AMD Ryzen 9000 / 8000 / 7000 Series Processors:
• Supports Dual Channel DDR5 - 8000+(OC) MT/s, Non-ECC, Un-buffered Memory
• 2 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
• Support Intel® Extreme Memory Profile (XMP) memory modules and AMD EXTended Profiles for Overclocking (EXPO) memory modules

• By CPU model
• Supports DX12
• Supports HDCP

• Total support 2 x M.2 Socket and 2 x SATA (6Gb/s) ports
• AMD Ryzen 9000 / 8000 / 7000 Series Processors
• 1 x M.2 (Key M2) Socket (M2M_CPU):
• Support M.2 Type 2260/2280 SSD module
• Support PCIe 4.0 x 4 (64Gb/s) - NVMe SSD
• AMD B850 Chipset
• 1 x M.2 (Key M2) Socket (M2M_SB):
• Support M.2 Type 2280 SSD module
• Support PCIe 4.0 x 4 (64Gb/s) - NVMe SSD
• 2 x SATA III Connector (6Gb/s):
• Supports AHCI & RAID 0, 1, 10

• Realtek RTL8125D
• 10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability

• Realtek ALC897
• 7.1 Channels, High Definition Audio, Hi-Fi (Front)

• 1 x USB 3.2 (Gen2) Type-C port (1 via internal header)
• 6 x USB 3.2 (Gen1) port (4 on rear I/O and 2 via internal header)
• 6 x USB 2.0 port (2 on rear I/O and 4 via internal header)

• Ryzen 9000 / 8000 / 7000 Series Processors
• 1 x PCIe 4.0 x16 Slot (x16 mode)
• AMD B850 Chipset
• 1 x PCIe 4.0 x4 Slot (x4 mode)

• 4 x USB 3.2 (Gen1) Port
• 2 x USB 2.0 Port
• 1 x 2.5 Gigabit LAN port
• 3 x Audio Jack
• 1 x SMART BIOS UPDATE Button
• 1 x SMART BIOS USB Port
• 1 x HDMI® Port (HDMI®2.1)
• 1 x DP Port (DP1.2)

• 2 x SATA III Connector (6Gb/s)
• 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module
• 1 x USB 3.2 (Gen2) Type-C Port (each header supports 1 USB 3.2 (Gen2) Type-C port)
• 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
• 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
• 1 x 8-Pin Power Connector
• 1 x 24-Pin Power Connector
• 1 x CPU Fan Connector
• 1 x CPU water cooling connector (CPU_OPT)
• 1 x System Fan Connector
• 1 x Front Panel Header
• 1 x Front Audio Header
• 1 x Speaker Header
• 1 x Clear CMOS Header
• 1 x COM Port Header
• 1 x TPM Header
• 2 x LED Header (5V)
• 1 x LED Header (12V)

• Supports RAID 0, 1, 10 for SATA storage devices
• Supports RAID 0, 1, 10 for NVMe storage devices

• Micro ATX Form Factor Dimension: 23.5cm x 24.4cm ( W x L )

• Supports Windows 10(64bit) / Windows 11(64bit)

• 2 x SATA Cable
• 1 x I/O Shield
• 1 x WiFi antenna accessories (Wi-Fi accessories are optional)
