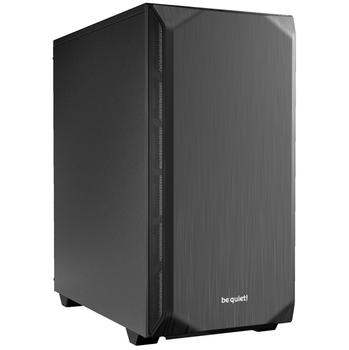

PURE BASE 500 Black Features: Exchangeable top cover for silent or high-performance systems 2 preinstalled Pure Wings 2 140mm fans Insulation mats on the front, sides and the regular top cover Water cooling ready for radiators of up to 360mm Generous space for high-end graphics cards and large coolers Various options to install up to 5 SSDs in total PSU shroud and smart cable routing options provide a neat interior Easy PSU installation from the back of the case Specifications: General Model Pure Base 500 Black Color option Black Motherboard compatibility ATX / M-ATX / Mini-ITX Case size excl. stands (L x W x H), (mm) 450 x 232 x 443 Case size incl. stands (L x W x H), (mm) 450 x 232 x 463 Volume (l) 39.2 PSU form factor ATX PS/2 Net weight (kg) 6.95 Expansion slots 7 Pre-installed fans Fan at top - Fan at front 1x Pure Wings 2 140mm Fan at side - Fan at rear 1x Pure Wings 2 140mm Fan at bottom - Dimensions (L x W x H), (mm) Front: 140 x 25 x 140 / Rear: 140 x 25 x 140 Fan speed at 100% PWM / 12V (rpm) 900 Airflow at 100% PWM / 12V (CFM / m3/h) 55.8 / 94.8 Air Pressure at 100% PWM / 12V (mm H2O) 0.6 Noise level at 100% PWM / 12V (dB(A)) 17.1 Voltage range (V DC) 12 Input power (W) 1.08 Input current (A) 0.09 Connector 3-pin Lifespan (h / 25°C) 80,000 Fan controller - Maximum fan installation Maximum fans 6 Top (mm) 2x 120 / 2x 140 Front (mm) 3x 120 / 2x 140 Side (mm) - Rear (mm) 1x 140 Bottom (mm) - PSU shroud - Optional radiator installation Top (mm) 120 / 240 Front (mm) 120 / 140 / 240 / 280 / 360 Side (mm) - Rear (mm) 120 / 140 Bottom (mm) - PSU compatibility Maximum dimensions excl. bottom fan (mm) 258 Maximum dimensions incl. bottom fan (mm) 225 Graphics card HDD cage (in height of graphics card) installed (mm) 369 HDD cage (in height of graphics card) removed (mm) 369 Maximum PCIe slots with vertical graphics card (pcs.) - Drive bay capacity 5.25 bays (pcs.) - 3.5 slots (scope of delivery) 2 3.5 slots (max.) 2 2.5 slots (scope of delivery) 5 2.5 slots (max.) 5 Cooling Max.construction height of CPU cooler unit (mm) 190 Airflow channel Front / Top / Rear Lighting LED illumination - LEDs (pcs.) - LED type - LEDs synchronizable with controller/motherboard - I/O Panel USB 3.2 Gen. 2 Type C - USB 3.2 Type A 2 USB 2.0 - HD Audio I/O Mic + Audio Qi charger / Quick Charging Option (W) - Insulation and damping Top panel insulation mats ✓ Front panel insulation mats ✓ Side panel insulation mats ✓ Anti-vibration decoupled HDD ✓ Anti-vibration decoupled fan - Anti-vibration decoupled PSU ✓ Anti-vibration decoupled motherboard-tray - Scope of delivery Screw set (Drives/Motherboard) ✓ Additional standoffs (pcs.) - SSD bracket for PSU shroud - LED strips (pcs.) - Cable ties (pcs.) 6 / 4 (Velcro) Screw box - VGA holder - VGA holder for inverted layout - Mesh Front Panel - ODD Bracket - Fan / Radiator bracket for multi mounting panel - Removeable dust filters Top - Front - Side - Bottom 1 Material Top cover ABS Front panel ABS Side panel Steel Side panel window - Stands ABS Safety certification Approvals CE, UKCA Environmental directives RoHS ✓ Reach ✓ WEEE - Triman ✓ Service Warranty (Years) 3 International hotline / free of charge ✓ / DE, FR, US
