Artikelnr:

IFP-7502

EAN:

4710739595987

Skärmstorlek 75"
Upplösning 3840 x 2160
HD 4K Ultra HD
USB-C 0
DVI 0
HDMI 4
Pekskärm Ja
Högtalare Ja
Skärmform Platt
Höjd justering Nej
Vridbar Nej
Pivot Nej
Användningsområde Personal display

IFP-7502

Interactive Flat Panel Displays Simplify Your Meeting Room
Built on the Android OS platform; Meetboard™ are designed to get meetings and presentations going right away, without the need for projectors, whiteboards, PCs or installing additional software. Eliminate cable clutter and enjoy a clean and organized meeting room thanks to wireless mirroring options. Present, brainstorm and take notes without cables in between or markers that are running out of ink.

The New Generation of Meetings
AG Neovo’s IFP-Series, Meetboard, is the all-around interactive display that stream- lines the meetings process. Since meetings can’t wait for slow loading screens, Meetboard’s on-board whiteboard app and launcher allows participants to directly access materials and get the meeting going without delay. Meeting materials and presentations are bright and crisp on the 4K display, ensuring that content is clear and compelling. And files and notes relevant to the meeting can be shared with ease, through QR code, email, or cloud drive.

Loaded with Built-in Interactive Apps
Draw and brainstorm with the Meetboard app, make a compelling presentation with WPS Office, or wirelessly share content from your PC, Mac or mobile device with ScreenShare Pro. Meetboard comes with all the apps needed for collaborating and sharing ideas out of the box.

Meetboard App
User-friendly interactive whiteboard software designed for interactive meetings and group discussions.

Connecting People and Devices has Never Been Easier
Collaborating on projects requires not only the input of your team, but also their devices and content. That is why Meetboard supports 802.11ac Wi-Fi and Bluetooth, for fast and seamless connections among the keyboards, webcams, and all the devices your team needs to get their ideas across. ScreenShare Pro app makes those connections extremely usable, by enabling collaboration through device mirroring and remote control from individual devices, no matter what operating systems your team members use: Windows, macOS, Android, or iOS.

Made for Hands-On Collaboration
Engaging with ideas over an electronic display can often present hurdles to participation. Meetboard lowers those hurdles with multi-touch and natural writing capabilities. Multiple participants, using their fingers or included styluses, can simultaneously draw and annotate on the 20-point touch-enabled display, making mind-mapping and brainstorming as intuitive as using a whiteboard.
Another common obstacle is not having the right driver for your content, an obstacle Meetboard does away with. Its Plug-and-Play Windows support allows Windows users to activate applications like PowerPoint and OneNote directly on the display—all without additional drivers.

Assistive Menu Lets Your Team Focus on What Matters
Meetings shouldn’t stop for technical issues. Enter Meetboard’s dedicated assistive menu, which works on any input source and Android apps, giving participants the power to access certain functions and shortcuts, like adjusting audio/brightness, capturing screenshots, toggling between tasks, and taking down notes.

Specification

Panel

Panel Type	LED-Backlit TFT LCD (IPS Technology)
Panel Size	74.5
Max. Resolution	UHD 3840 x 2160
Pixel Pitch	0.430 mm
Brightness	350 cd/m²
Contrast Ratio	1100:1
Viewing Angle (H/V)	178°/178°
Display Colour	1.07B
Response Time	5 ms
Surface Treatment	Anti-Glare Treatment (Haze 28%), 2H Hard Coating

Frequency

Frequency (H)	30 kHz-80 kHz
Frequency (V)	50 Hz-76 Hz

Signal Input

HDMI	2.0 x 3
VGA	15-Pin D-Sub x 1

Signal Output

HDMI

2.0 x 1

External Control

RS232 In	9-Pin D-Sub
LAN	RJ45 x 1

Embedded Player

OS	Android 8.0
CPU	Dual core A73+Dual core A53
Memory	3 GB
Storage	16 GB

Other Connectivity

USB	2.0 x 3 / 3.0 x 3

Audio

Audio In	Stereo Audio Jack (3.5 mm)
Audio Out	Stereo Audio Jack (3.5 mm), S/PDIF
Internal Speakers	16W x 2

Touch Screen

Panel Interface	USB 2.0 x 2 (Type-B)
Technology	Infrared Touch Frame
Positional Accuracy	±1.5mm
Single Touch Plug & Play	Windows 2000/XP/Vista/CE 6.0macOS
Multi-touch Plug & Play	Windows 7/8/10Android/Linux (kernel version 3.5+)Chrome OS (39 or above)
Multi-touch Support by Driver	macOS (supported by UPDD driver)

Power

Power Supply	Internal
Power Requirements	AC 100-240V, 50/60 Hz
On Mode	165W
Stand-by Mode	< 0.5W
Off Mode	< 0.5W

Glass

Thickness	4.0 mm (0.16")
Reflection Rate	< 10%
Transmission Rate	≥ 88%
Hardness	≥ 8H
COM_FIELDS_GLOSS	75±5 GU

Operating Conditions

Temperature	0°C-40°C (32°F-104°F)
Humidity	10%-90% (non-condensing)

Storage Conditions

Temperature	-20°C-60°C (-4°F-140°F)
Humidity	10%-90%(non-condensing)

Mounting

VESA FPMPMI

Yes (800 x 400 mm)

Dimensions

Product w/o Base (W x H x D)	1710.0 x 1020.0 x 86.0 mm(67.3" x 40.2" x 3.4")
Packaging (W x H x D)	1860.0 x 1140.0 x 280.0 mm(73.2" x 44.9" x 11.0")

Weight

Product w/o Base	50.6 kg (111.6 lb)
Packaging	72.9 kg (160.7 lb)

Regulation Approval

Certifications & Compliance

CE, LVD, FCC, WEEE, REACH, RoHS, BSMI

Accessories

Supplied

Power Cord, HDMI Cable, USB Cable, Remote Control, Batteries, Quick Start Guide, Touch Pen, Wall Mount, Wi-Fi / Bluetooth Module

Optional Accessories

Floor Mount (Landscape only)	FMC-03+LMK-04, FMC-04+LMK-04
Wall Mount (Landscape only)	LMK-03

Display

Skärm diagonal

189,2 cm (74.5")

Skärmtyp

LCD

Paneltyp

IPS

LED-bakgrundsbelysning

Upplösning

3840 x 2160 pixlar

Ljusstyrka

350 cd/m²

HD-typ

4K Ultra HD

Pekskärm

Pekskärmsteknik

Infraröd

Antalet samtidiga beröringspunkter

Flerpunktsberöring

Native bildförhållande

16:9

Svarstid (medel)

5 ms

Kontrastförhållande (medel)

1100:1

Betraktningsvinkel (horisontell)

178°

Synfältsvinkel (vertikal)

178°

Antal färger

1,073 miljarder färger

Bildpunktavstånd

0,43 x 0,43 mm

Diagonal skärmstorlek

189 cm

Horisontellt sökområde

30 - 80 kHz

Vertikalt sökområde

50 - 76 hz

Dimfaktor

28%

Ytans hårdhet

RGB-färgrymd

NTSC

Anslutningar

Antal HDMI-portar

HDMI-version

2.0

Antal HDMI-ingångar

Antal HDMI-utgångar

DVI-port

Nej

VGA (D-Sub) ingångsportar

USB-port

Antal USB-portar

USB-version

2.0/3.2 Gen 1 (3.1 Gen 1)

Nätverksansluten (Ethernet)

Antal LAN (RJ-45) anslutningar

Wi-Fi

RS-232-gränssnitt

Audio

Inbyggda högtalare

Antal inbyggda högtalare

Uteffekt (RMS)

32 W

Design

Produktdesign

Interaktiv plattskärm

Produktens färg

Svart

Placeringar som kan användas

inomhus

VESA-fäste

Gränsssnitt för panelmontering

800 x 400 mm

Monteringssätt

Vägg

Prestanda

Ändamål

Kommersiellt

Strömtillförsel

Strömförbrukning (vanlig)

165 W

Strömförbrukning i vänteläge

0,5 W

Strömförbrukning i avslaget läge

0,3 W

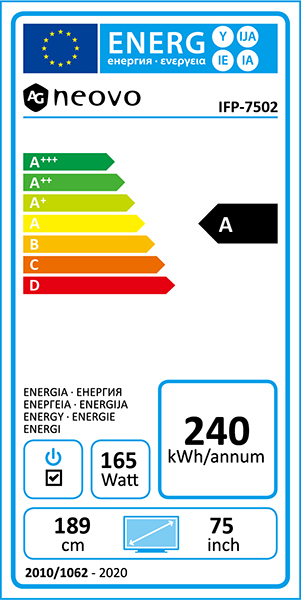

Energieffektivitetsklass (SDR)

Energieffektivitetsklass (HDR)

Energiförbrukning (SDR) per 1 000 timmar

240 kWh

AC-inspänning

100 - 240 V

Växelström Frekvens

50 - 60 hz

Energieffektivitetsskalning

A+++ till D

Datorsystem

Datorsystemtyp

System on Chip (SoC)

Inbyggd processor

Processorarkitektur

ARM Cortex-A53+Cortex-A73

Processorkärnor

Internminne

3 GB

Intern lagringskapacitet

16 GB

Installerat operativsystem

Android 8.0

Windows-operativsystem som stöds

Windows 2000, Windows 10, Windows 8, Windows 7, Windows XP, Windows Vista, Windows 11

Mac-operativsystem som stöds

Vikt & dimension

Skärmbredd

1710 mm

Visa djupet

86 mm

Visa höjd

1020 mm

Visa vikt

50,6 kg

Förpackning

Förpackningens bredd

1860 mm

Låddjup

280 mm

Höjd

1140 mm

Vikt inkl. förpackning

72,9 kg

Förpackningens innehåll

Fjärrkontroll ingår

Typ av fjärrkontroll

Batterier medföljer

Kabel inkluderad

AC, HDMI, USB

Monteringssats

Miljökrav

Temperatur vid drift

0 - 40 ° C

Intervall för relativ operativ luftfuktighet

10 - 90%

Temperaturintervall (förvaring)

-20 - 60 ° C

Fuktighet (förvaring)

10 - 90%

Certifikat

Certifiering

CE, LVD, FCC, WEEE, REACH

Logistikdata

Harmonized System (HS)-kod

85285210

Egenskaper

Monteringsbar på väggen

Tekniska detaljer

Compliance certificates

RoHS

AG NEOVO IFP-7502 | Meetboard | 75"" | 3840x2160 | 350Nits | IR Touch |
