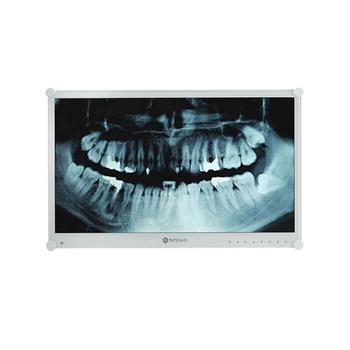

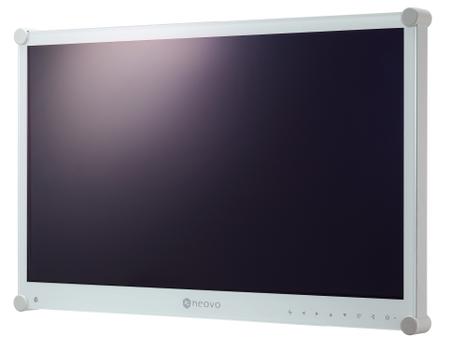

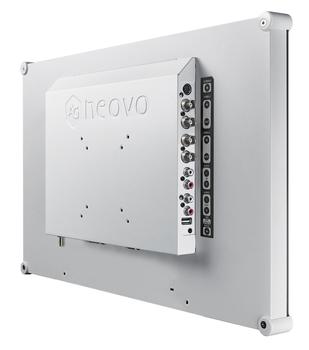

DR-24G 24-Inch 1080p Dental Monitor Features: The special design of NeoV™ Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection. The DR-24G 24-inch dental monitor integrates hotkey operation to switch X-ray viewing mode without using another X-ray view box. Designed with DC 24V power supply, it is ideal for long-distance (up to 5 meters) cable management between dental equipment and displays. The medical power supply with IEC / EN60601-1 certified ensures safety, performance, and reliable operation in any professional medical environment. PiP/PbP functions enable viewing and comparing two images simultaneously from different sources and enhance work efficiency for multitasking. This 24-inch dental monitor meets VESA 75mm/100mm wall mount standard and optional handle for flexible installation and operation on the dental chair. Specifications: Panel Panel Type VA Panel Size 23.8" Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.274 mm Brightness 250 cd/m² Contrast Ratio 20,000,000:1 (DCR) Viewing Angle (H/V) 178°/178° Display Colour 16.7M Colour Gamut NTSC 72% Response Time 5 ms Surface Treatment Seriesant1-Glare Treatment (Haze 40%) 3H Hard Coating Frequency Frequency (H) 24 kHz-83 kHz Frequency (V) 50 Hz-75 Hz Signal Input DisplayPort x 1 HDMI 1.4 x 1 DVI 24-Pin DVI-D VGA 15-Pin D-Sub x 1 Composite BNC x 2 S-Video 4-Pin mini DIN x 1 Signal Output Composite BNC x 2 External Control RS232 In 2.5 mm Phone Jack Other Connectivity USB 2.0 x 1 (Service Port) Audio Audio In Stereo Audio Jack (3.5 mm) Stereo Audio Jack (RCA) Audio Out Stereo Audio Jack (RCA) Internal Speakers 2W x 2 Power Power Supply External Power Requirements DC 24V 2.71A On Mode 18W (On) Standby Mode < 0.5W Off Mode < 0.3W Glass Thickness 3.0 mm (0.12") Reflection Rate < 1% Transmission Rate > 97% Hardness > 9H Operating Conditions Temperature 0°C-40°C (32°F-104°F) Humidity 10%-90% (non-condensing) Storage Conditions Temperature -20°C-60°C (-4°F-140°F) Humidity 5%-95% (non-condensing) Mounting VESA FPMPMI Yes (100 x 100 mm & 75 x 75 mm) Security Kensington Security Slot Yes Dimensions Product w/o Base (W x H x D) 562.4 x 352.6 x 56.2 mm (22.1" x 13.9" x 2.2") Packaging (W x H x D) 672.0 x 517.0 x 249.0 mm (26.5" x 20.4" x 9.8") Weight Product w/o Base 7.4kg(16.3 lb) Packaging 10.6 kg (23.4 lb) Regulation Approval Certifications & Compliance CE FCC ICES-003 (Issue 7) LVD WEEE RoHS REACH EAC UKCA Accessories Supplied Audio Cable Power Adaptor Power Cord Quick Start Guide VGA Cable Warranty Card Optional Accessories Handle HDL-02 Ceiling Mount (Landscape only) CMP-01 + WMK-03 Wall Mount (Landscape only) PMK-01 WMA-01 WMK-01 WMK-03 Desk mount (Landscape only) DMC-01 DMC-02D DMS-01D ES-02
