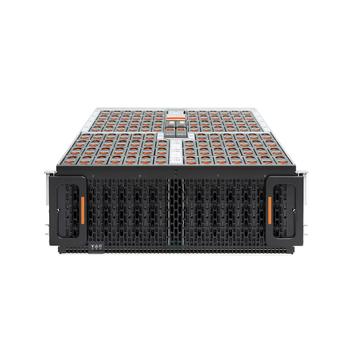

Ultrastar Data102 Hybrid Storage Platform The 102-Bay Next-Generation Hybrid Platform for Software-Defined Storage The Ultrastar Data102 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The extremely dense form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost. A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and resellers/integrators that require dense, shared HDD or hybrid storage. Features: Up to 102 Ultrastar HDDs (SAS or SATA) Hybrid support with up to 24 SSDs (SAS or SATA) for a data acceleration tier Up to 1.4PB of raw storage in 4U Choose dual-port SAS for high availability or single-port SATA for low cost 4 rack units, 1047mm depth Up to 12 x 12Gb/s SAS-3 host connections Innovative IsoVibe technology ensures maximum performance even in heavy workloads Enterprise-grade redundant and hot-swappable PSUs, IO Modules and fans Improved cooling from innovative ArcticFlow technology Rack-mounted top cover for quick and easy service Specifications: Max. Drives 102 x 3.5” drive bays Up to 24 can be SAS or SATA SSD Drive Interface 12Gb/s SAS 6Gb/s SATA Available Drive Capacities HDD up to 14TB SSD up to 15.36TB Host Interface Dual redundant I/O Modules (IOM) 6 Mini-SAS HD ports per IOM Weight Product without drives: 31.8kg (70lbs) Product with 102 HDDs: 118.8kg (262lbs) LED Indicators Front/Rear: Power, ID, Fault Drive: Activity, Fault Physical Dimensions Height: 175mm (6.89”) Width: 447mm (17.61”) Depth: 1047mm (41.25”) Depth in Rack: Max of 1197mm (47.13”) w/ dual CMA—includes 2 SAS cables Management SCSI Enclosure Services Redfish (out of band, via RJ45) Power Dual 1600W, 80+ Platinum 200-240V AC input, auto ranging, 50-60Hz Cooling 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention 1 IO module fan Dual PSUs with built-in fans Environmental Operating Temperature: 5°C to 35°C Non-op Temperature: -40°C to 70°C Humidity: 5 to 85% relative humidity Operating Altitude: 40°C @ 3,000ft Sound Power: < 7.2Bels @ 23±2°C Serviceability Cable-free hot-swappable IOM, power supply, fans and drives
