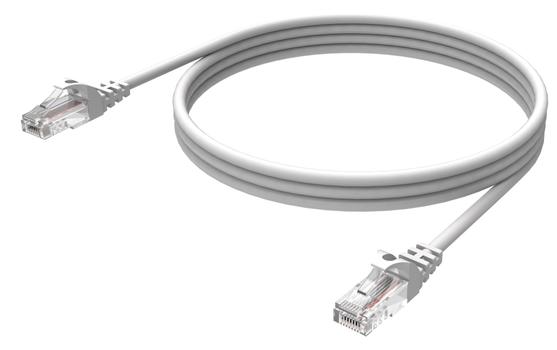

VISION Professional installation-grade Ethernet Network cable - LIFETIME WARRANTY - RJ-45 (M) to RJ-45 (M) - UTP - CAT 6 - 250 MHz - 24 AWG - booted - 50 cm - white
SKU:
TC 0.5MCAT6
-
- RJ45 8P8C (male) to RJ45 8P8C (male)
- Colour: White
- U/UTP (unscreened)
- Stranded bare copper conductors
- Gold-plated RJ45 booted connectors
- Insulation: HDPE, diameter: 0.97 mm (0.04″)
- Sheath: PVC, thickness: 0.6 mm (0.02″); outer diameter: 6.2 mm (0.24″)
- Conductor thickness: 24AWG (7/0.2)
- Bandwidth: 250MHz
- Impedance (Ω) 100±15
- Delay Skew @ 20℃(ns/100m) ≤45
|
Kabellängd 0,5 m |
Kabel standard Cat6 |
Kabelskärmen U/UTP (UTP) |
Kabelfärg Vit |
Anslutning 1 RJ-45 |
Anslutning 2 RJ-45 |
Kontakttyp Hane/Hane |
Anslutning kontakter plätering Guld |
Jacka material Polyvinylklorid (PVC) |
Ledare typ Stranded |
AWG ledararea 24 |
Frekvens 250 MHz |
|
Ytterdiameter 6,2 mm |
|
Synkroniserad ingångsimpedans 100 Ω |
