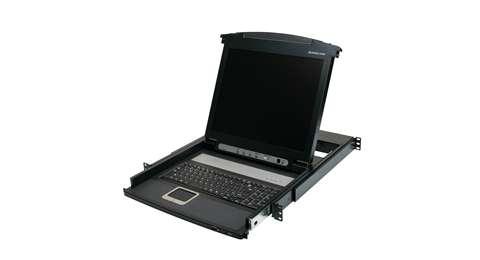

IOGEAR 17" LCD KVM Combo Console
SKU:
GCL1800
-
17" LCD Combo Console
GCL1800
IOGEAR's new 17" LCD Combo Console offers a space-saving, streamlined approach to IT environments by integrating a keyboard, 17" TFT LCD active matrix monitor, and touchpad in one unit.
The LCD display is built into the cover; the keyboard and touchpad are built into the base. Setup is fast and easy. There is no software to configure, no installation routines and no incompatibility problems. Slide the console module section out; flip the cover up; and you are ready to go to work. When finished, flip the cover down and slide the console module back into the rack.
For further convenience and flexibility, the LCD drawer also supports an external USB mouse port, and an external console ports (keyboard, monitor, and mouse), which allows a second user to take control of the KVM either remotely or locally. (Remote operation requires additional equipment).
Features
- Integrated KVM console featuring a 17" TFT LCD active matrix monitor , keyboard and touchpad
- 1280 x 1024 resolutionon 19" rack mountLCD provides asharpvideo display
- Adjustable depth to fit different sizes of racks
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully Supports DDC2B
Warranty: 3-YEAR
Specifications
| Function |
GCL1800 |
| Computer Connections |
| Direct |
1 |
| Daisy Chain or Cascading |
256 |
| Connectors |
| Second Console Video |
1 x HDB-15 Female |
| Second Console Keyboard |
PS/2 or USB |
| Second Console Mouse |
PS/2 or USB |
| Mouse |
1 x USB (External USB Mouse Port) |
| Power |
1 x 3-Prong AC Socket |
| Console Connectors |
| Flash ROM Upgrade |
1 x RJ-11 Female |
| CPU Connectors |
| Keyboard, Mouse, and Monitor |
1 x SPHD-15 Female |
| Switches |
| Power |
1 x Rocker Switch |
| Reset |
1 x Semi-recessed Pushbutton |
| F/W Upgrade |
1 x Switch |
| LCD Power |
1 x LED Pushbutton (Orange) |
| LCD Adjustment |
4 x Pushbutton |
| LEDs |
| Power On |
Dark Green |
| Emulation |
| Keyboard |
PS/2, USB |
| Mouse |
PS/2, USB |
| Video Resolution |
1280 x 1024 @ 75Hz; DDC2B |
| Power Input Rating |
| Per AC Power Inlet, 50/60Hz |
100~240VAC. 50/60Hz, 1A |
| Power Consumption |
120V, 29.6W |
| Environment |
| Operation Temperature |
0~40°C |
| Storage Temperature |
-20~60°C |
| Humidity |
0~80% RH; Non-condensing |
| Housing |
| Case |
Metal and Plastic |
| Dimensions |
GCL1800 |
| Unit Dimensions |
| Width |
19in. |
| Height |
1.75in. |
| Depth |
21in. |
| Unit Package Dimensions |
| Width |
26.75in. |
| Height |
5.5in. |
| Depth |
28.5in. |
| Weight |
| Unit Pack Wt. |
40.1lb |
| Unit Wt. w/accessories |
30.27lb |
| Unit Wt. |
25.94lb |
Requirements
Computers:
- VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
- PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
Package Content
- 1 x 17" LCD Console
- 1 x USB KVM Cable
- 1 x Firmware Upgrade Cable
- 1 x Rack Mount Kit (Short and Long L Brackets)
- 1 x Grounding Wire
- 1 x Power Cord
- 1 x Installation Guide
- 1 x Warranty Card
|
Skärm diagonalt 43,2 cm (17") |
|
Produktens färg Svart |
Intervall för relativ operativ luftfuktighet 0 - 80% |
|
Gränssnitt USB |
|
AC adapter inspänning 100~240 V |
AC adapter frekvens 50/60 hz |
|
Temperatur vid drift 0 - 40 ° C |
Temperaturintervall (förvaring) -20 - 60 ° C |
|
Bredd 482 mm |
Höjd 44 mm |
Djup 533 mm |
Vikt 13,6 kg |
