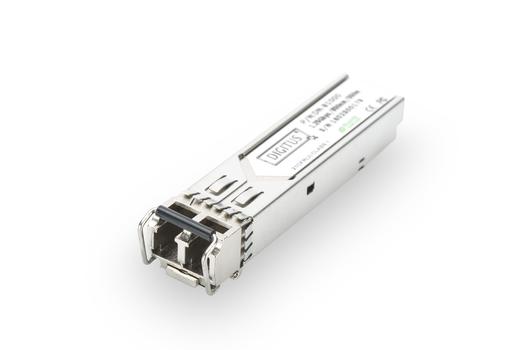

DIGITUS 1.25 Gbps SFP Modul Up to 550m
SKU:
DN-81000
Product:
Transceiver / GBIC / SFP
-
The DIGITUS mini GBIC (SFP) Transceiver Modules offer highest Quality and Reliability. Wether from Switch to Switch, Converter to Switch, Converter to Converter or any else application: The wide product range of DIGITUS Modules makes possible a flexible usage of the Fiber Technology. The Conformity to the MSA (Multi Source Agreement) Standard ensures a Compatibility to third party Manufacturers.
- mini GBIC SFP (Small Form Factor Pluggable) Module
- High quality and excellent reliability
- 1.25 Gbps Maximum Data Rate
- Compliant to IEEE 802.3z Gigabit Standard
- Class 1 Laser product compliant with EN 60825-1
- Easy Plug and Play Installation
- MSA (Multi Source Agreement) compliant
- Hot pluggable
- Connector: 1x LC Duplex
- 1000Base-SX - For Short Haul
- Wavelength: 850nm
- Transmission Power: Minimum -8 dBm, Maximum -3 dBm
- Sensitivity Receiving Power: Minimum -20 dBm
- For a Distance of up to 0.55km
- Suitable for 50/125µm and 62.5/125µm Multimode Fiber Cables
- Safe fast-locking mechanism
- 3.3V Power Supply
|
SFP transceiver typ Fiberoptik |
Standardanslutning SFP |
Stöd för MMF (Multi-mode fiber) |
Fiberoptiska kontakten LC |
Fiber kabeldiameter stöds 50/125 um |
SFP transceiver standard SX |
Maximal överföringshastighet avstånd 550 m |
Våglängd 850 nm |
Tx effekt (min) -8 dBmW |
Tx effekt (max) -3 dBmW |
Rx effekt (min) -20 dBmW |
Kommunikationsstandarder IEEE 802.3z |
|
Plug & Play-kompatibel |
|
Maxspänning 3,3 V |
