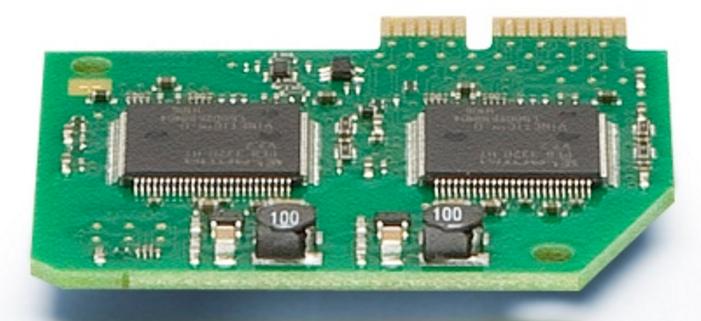

AUERSWALD COMpact 6VoIP module
SKU:
90425
TYPE:
Module / Accessories
-
COMpact 6VoIP-Modul
Adds six VoIP channels for internal IP telephony and internet telephony. Provides additional codecs with voice compression to ensure optimum sound quality, even for smaller bandwidths for all eight channels.
Specifications:
| COMpact 6VoIP Module |
| Operating voltage |
from the COMpact unit |
| Installation |
slot inside the COMpact 5020 VoIP |
| External mode |
up to 6 VoIP channels, PTMP or PTP connection (SIP-Trunking) |
| Internal mode |
up to 6 VoIP channels |
| VoIP standard |
SIP as per RFC 3261 |
| VoIP codecs external |
G.711, G.723.1, G.726, G.729A/E, iLBC |
| VoIP-Codecs internal |
G.711, iLBC |
| Fax over IP |
T.38 as per ITU-T |
| Dimensions (w x h x d) |
52 mm x 53 mm x 3 mm |
| Weight |
approx. 12 g |
| Safety |
CE |
|
Kompatibel COMpact 5020 |
|
Antal kanaler 6 channels |
