ALPHACOOL 11999
SKU:
11999
Type / Purpose:
Processor
-

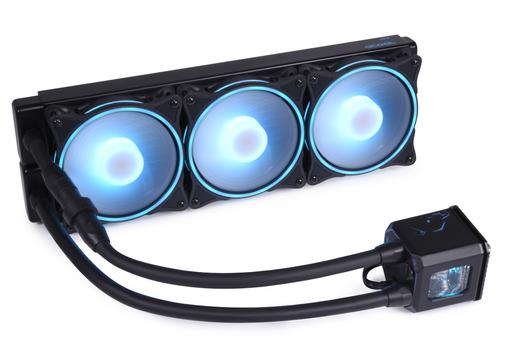

Eisbaer Aurora HPE Edition 360 CPU AIO
11999
The Eisbaer Aurora HPE Edition 360 CPU AIO water cooling features the extremely powerful NexXxos HPE Performance all-copper radiator equipped with the high-throughput Aurora Rise 120mm fans. All of the components used come from the classic DIY water cooling range and are also used for the most part in the enterprise products for servers. The Eisbaer LT Aurora can be expanded with additional components thanks to the quick-release fastener. Alphacool's Eisbaer Aurora HPE Edition 360 CPU AIO is a high performance all-in-one water cooling system that is as easy to install as an AIO, but offers the performance of a pre-assembled and pre-filled custom loop.
Specifications:
Technical data radiator
- L x W x H 391,5 x 124 x 30mm (+/- 3%)
- Material cooling fins, pre-chambers & channels copper
- Material threads brass
- Material outer housing stainless steel
- Threads 2x G1/4"
- Possible fan size 120mm
- Possible fan assembly 3x one-sided / 6x both-sided
- Pressure tested 0,8 Bar
- Maximum working temperature 60°C
- Fin density 18 FPI
Technical data cooler with pump
- L x W x H 66 x 66 x 69mm
- Material cooler bottom nickel plated copper
- Material cooler top & reservoir nylon, acrylic
- Threads 2x G1/4“ (+ 1x Fillport G1/4“)
- Pump type DC-LT2
- Pump speed 2600 rpm (+/- 10%)
- Head of delivery 0,95 m
- Maximum flow rate 75 L/h
- Voltage 12V DC
- Power consumption 4W
- Pressure tested 0,8 Bar
- Maximum working temperature 60°C
Technical data fans
- L x W x H 120 x 120 x 25mm
- Speed 0-2500 rpm (+/- 10%)
- Bearing Sleeve Bearing
- Connection 4-Pin PWM
- Cable length 40cm
- Voltage 12V DC
- Current consumption 0,65A (0,72 max)
- Static pressure 3,17 mm/H₂O
- Max. air flow 118,9 m³/h
- Noise max. 31,5 dB(A)
- Number of digital aRGB LEDs 20
Technical data liquid
- Color clear
- Ingredient 1 destilled water (CAS-Nummer 7732-18-5)
- Ingredient 2 Glysantin (CAS-Nummer 1017-21-1)
- Working temperatures 15C°/+90°C
Technical data quick-release coupling
- Dimensions 95 x 27mm
- Material Nylon
- Tube size 12,7/7,6mm
- Color black
Technical data connectors
- Dimensions (connection straight) 24 x 18mm
- Quantity (connection straight) 2x
- Dimensions (connection 90°) 35 x 27 x 17mm
- Quantity (connection 90°) 2x
- Tube size 12,7/7,6mm
- Material brass
Technical data tube
- Length 40cm
- Material TPV (EPDM/PP)
- Tube size 12,7/7,6mm
- Hardness grade 35 Shore-A to 50 Shore-D
- Maximum working temperature -50 to +155°C
- Color black
Compatibility:
- Intel: 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066
- AMD: AM4 / AM5 / TR4 / sTRX4 / sWRX8 / SP3
